The Research Process

Data Analysis for Psychology in R 3

Josiah King

Psychology, PPLS

University of Edinburgh

QR CODE!!!

Course Overview

multilevel modelling working with group structured data	regression refresher
	introducing multilevel models
	more complex groupings
	centering, assumptions, and diagnostics
	recap
factor analysis working with multi-item measures	what is a psychometric test?
	using composite scores to simplify data (PCA)
	uncovering underlying constructs (EFA)
	more EFA
	recap

VISUAL RECAP

example

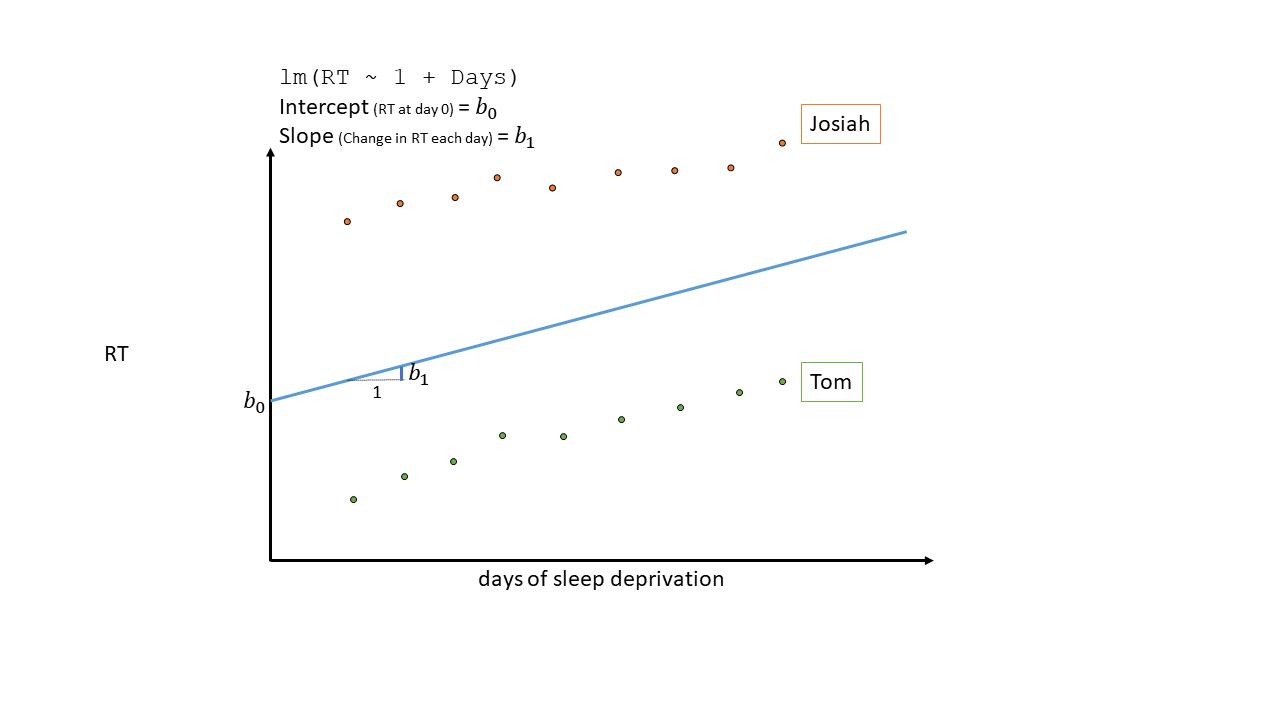

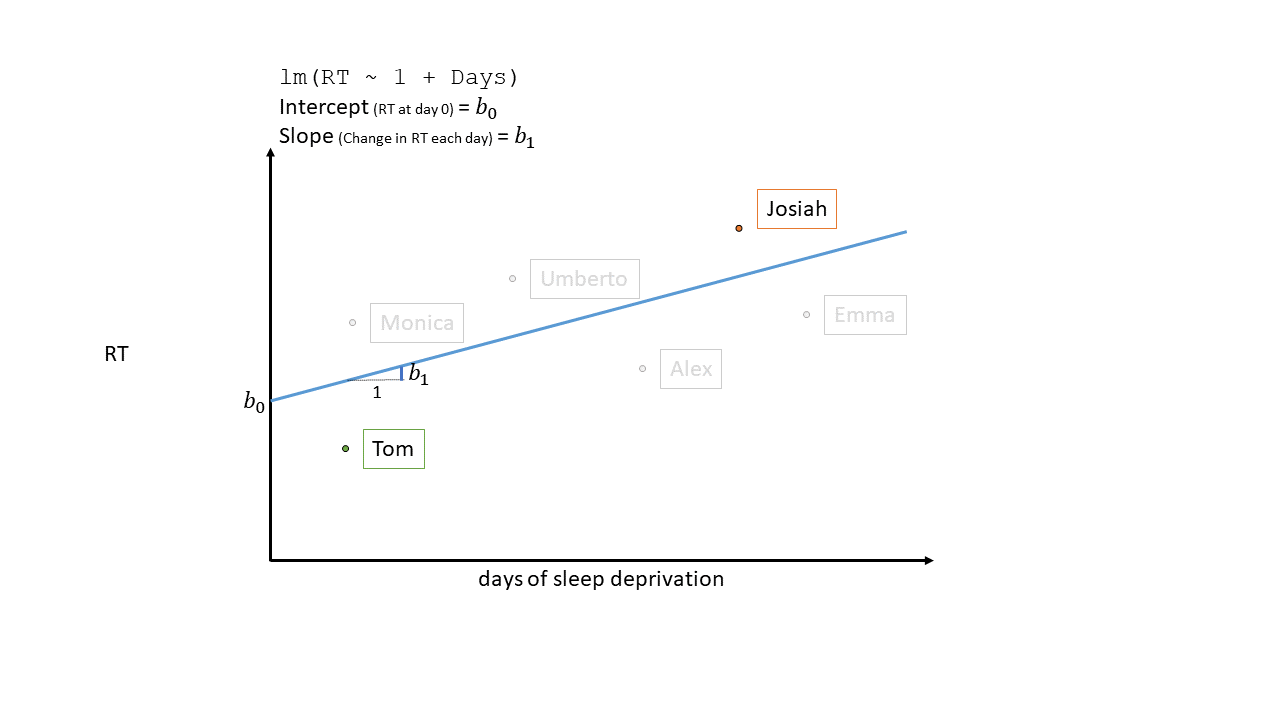

lm: a line

lm: a line (2)

lm: a line (3)

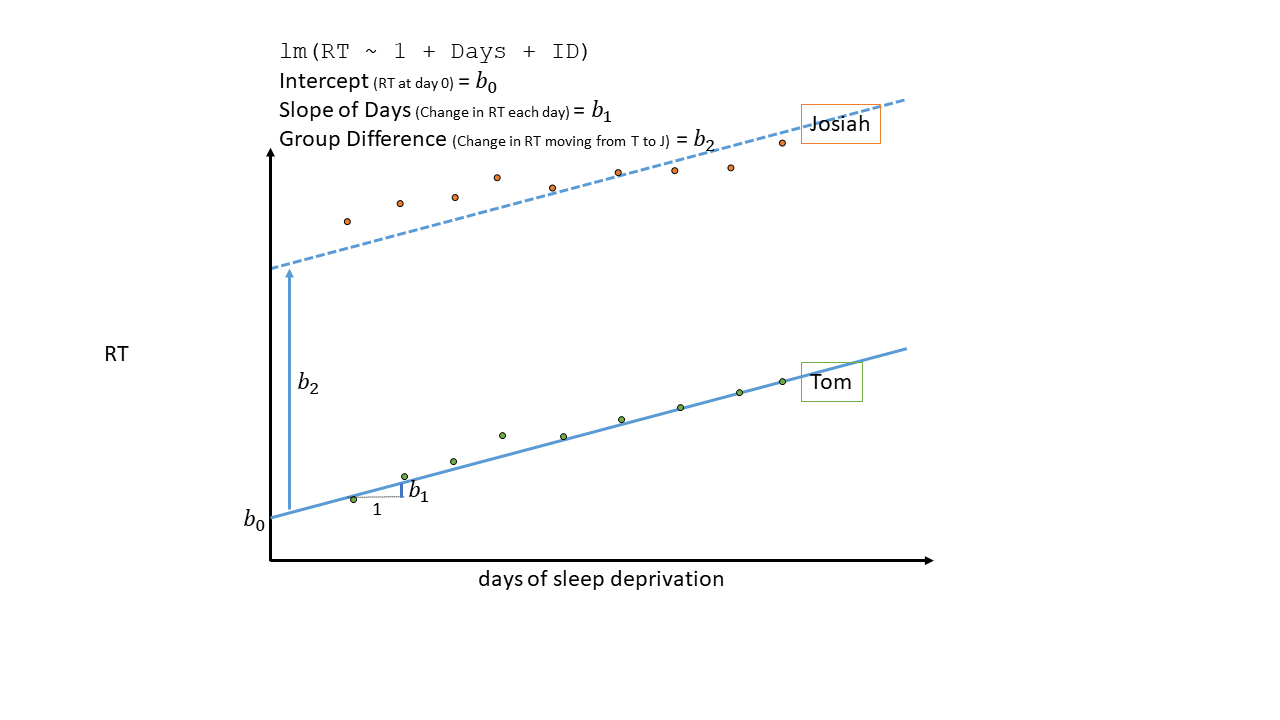

lm: lines and differences between them

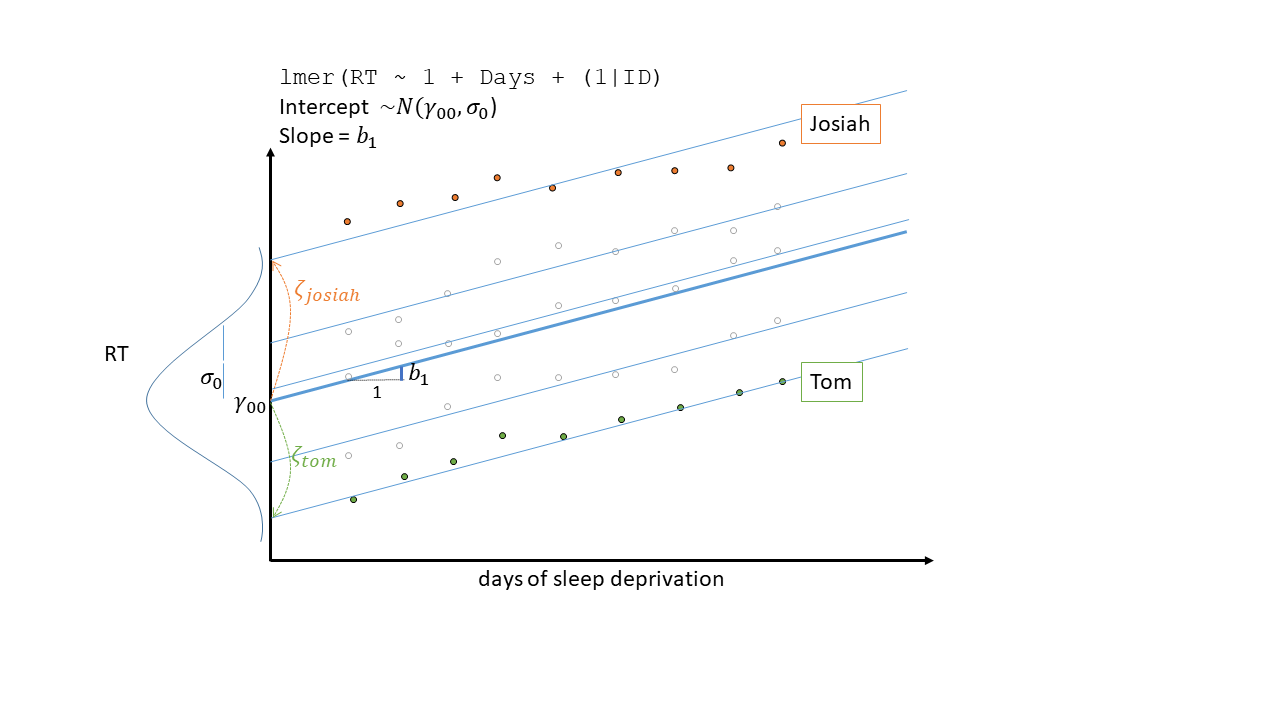

lmer: lines with a distribution of intercepts

lmer: lines with a distribution of intercepts (2)

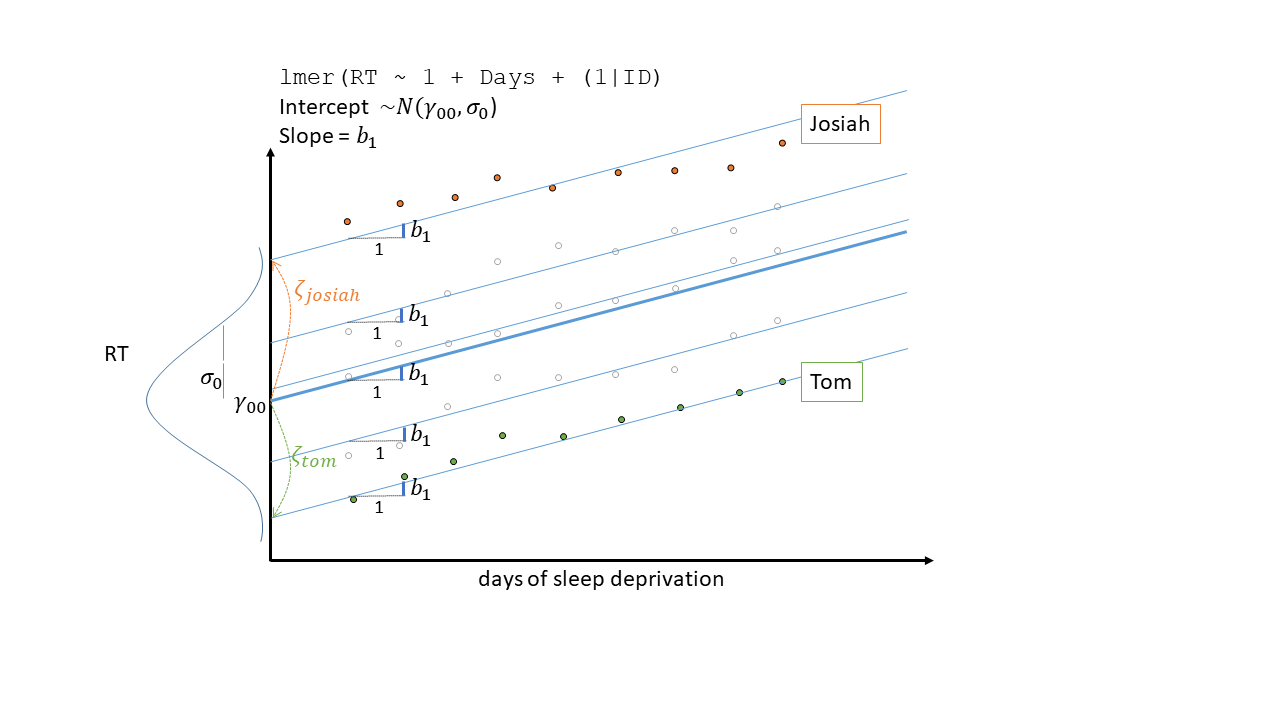

lmer: lines with a distribution of intercepts (3)

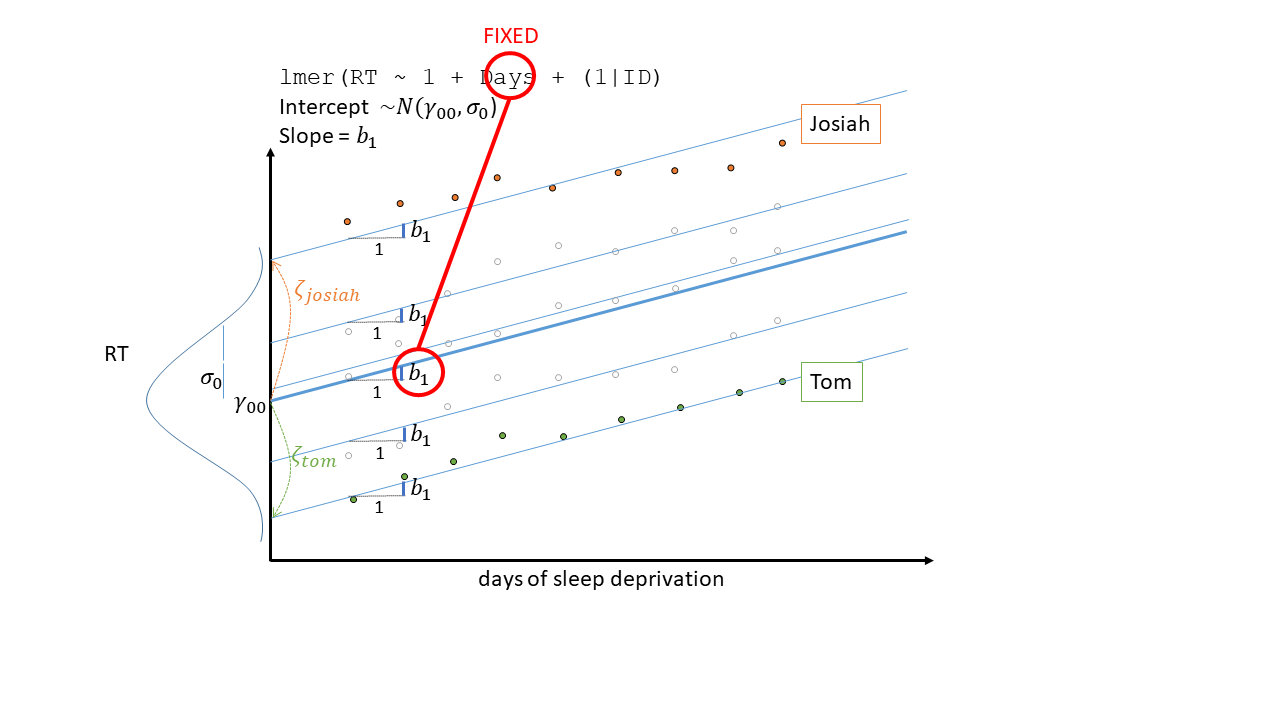

lmer: lines with a distribution of intercepts (4)

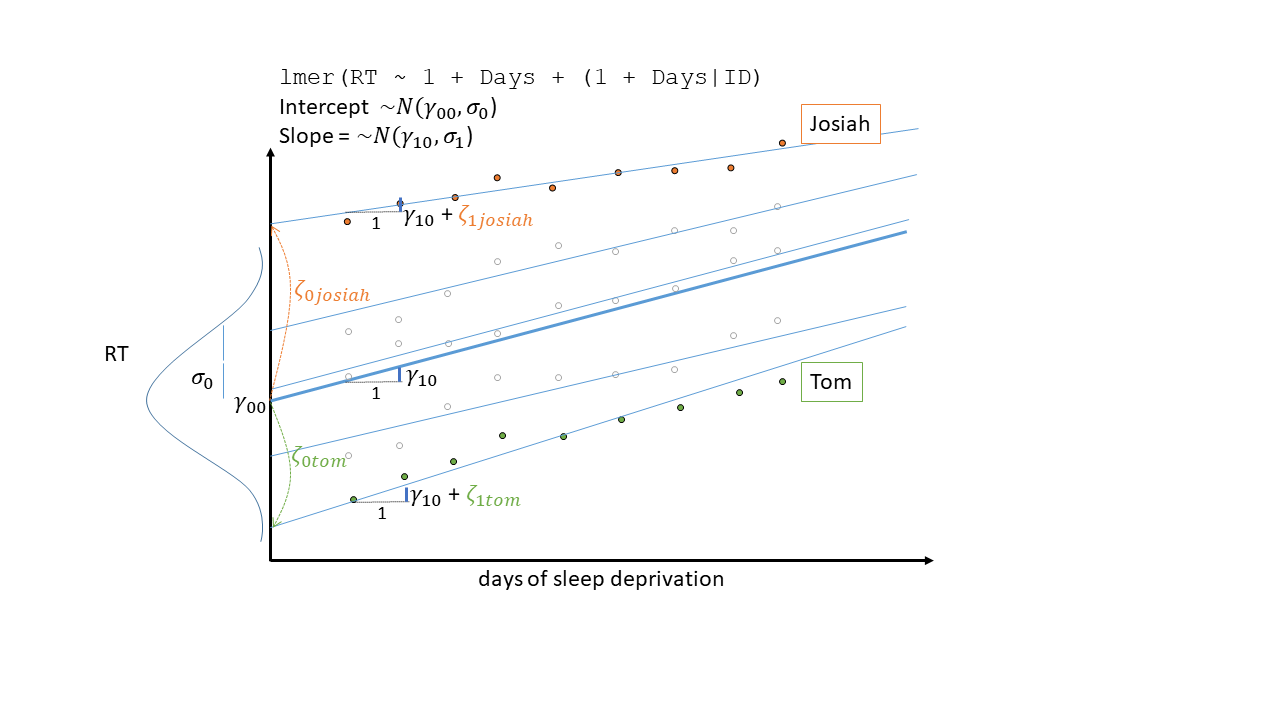

lmer: and with a distribution of slopes

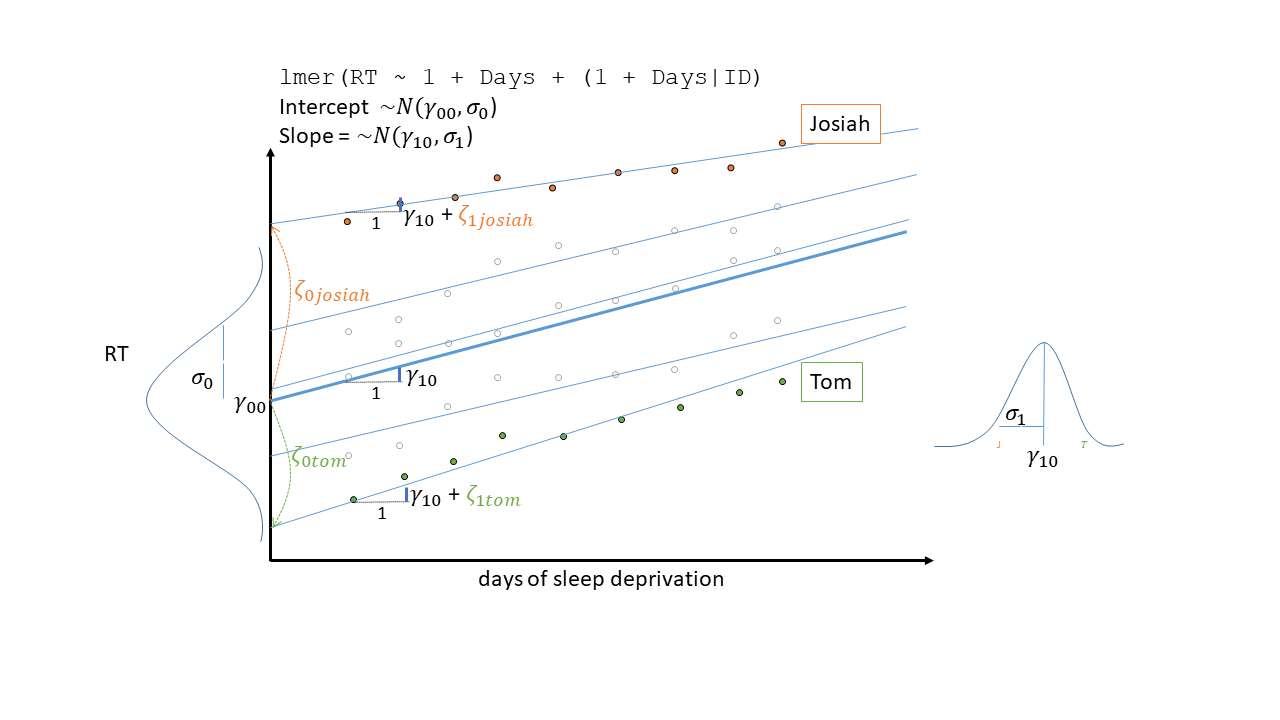

lmer: and with a distribution of slopes (2)

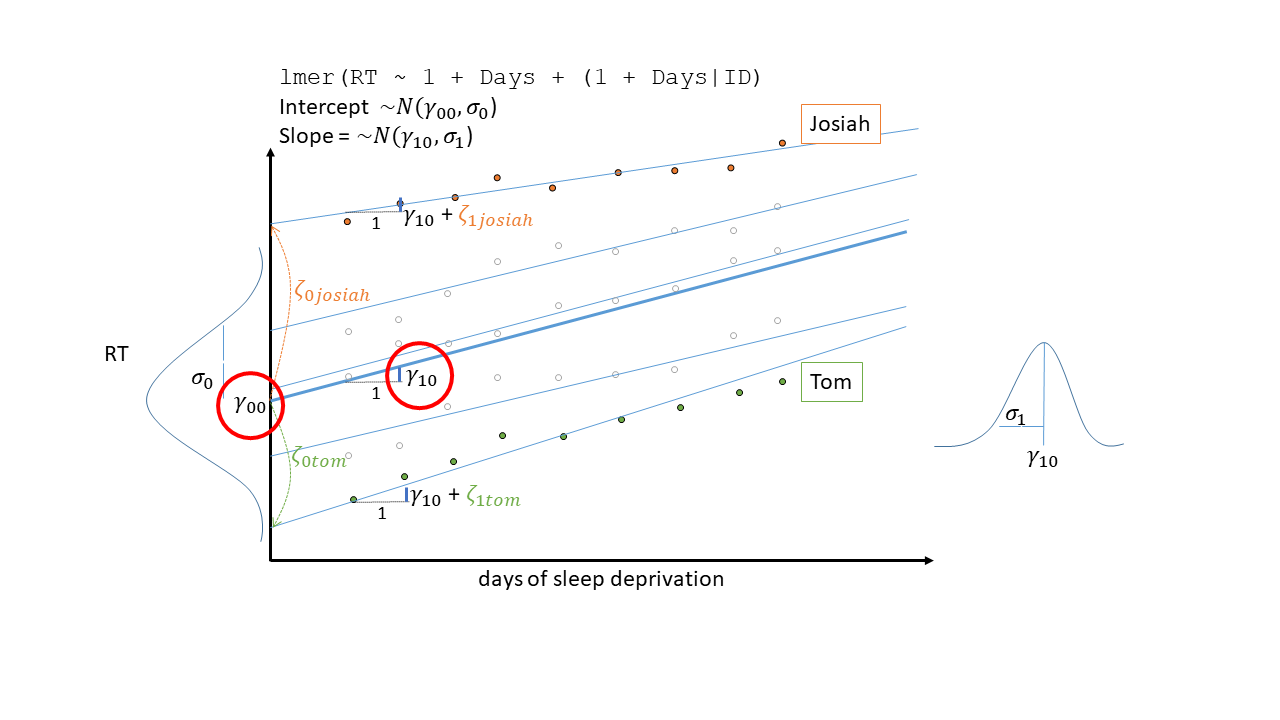

fixed and random

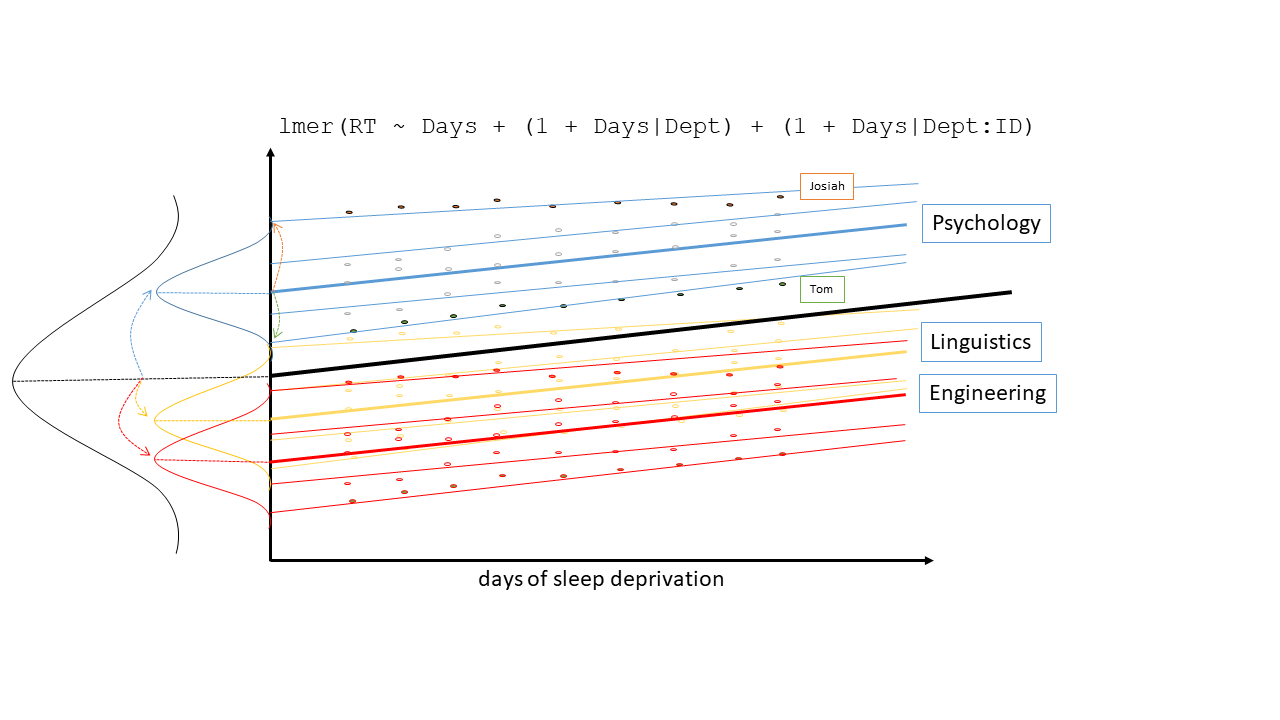

nested: distributions of distributions

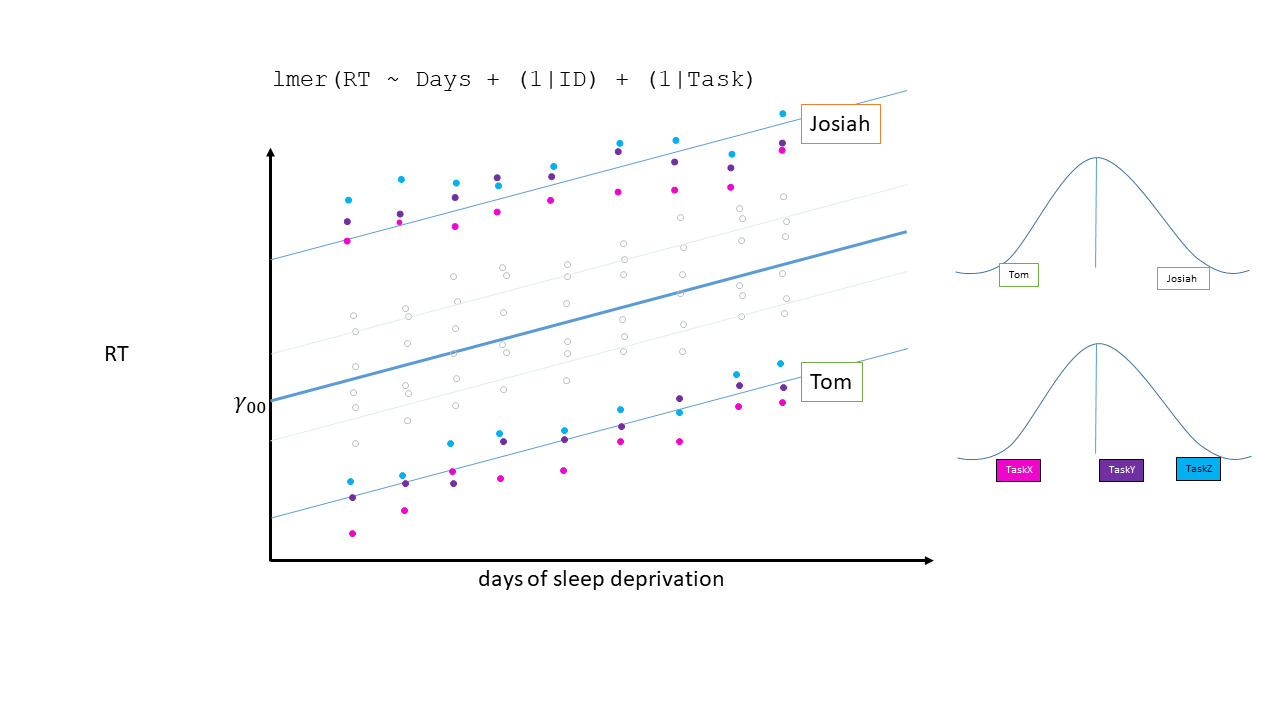

crossed: distributions and distributions

The research process: model specification

Study

In 2010 A US state’s commissioner for education was faced with growing community concern about rising levels of adolescent antisocial behaviours.

After a series of focus groups, the commissioner approved the trialing of an intervention in which yearly Parent Management Training (PMT) group sessions were offered to the parents of a cohort of students entering 10 different high schools. Every year, the parents were asked to fill out an informant-based version of the Aggressive Behaviour Scale (ABS), measuring verbal and physical abuse, socially inappropriate behavior, and resisting care. Where possible, the same parents were followed up throughout the child’s progression through high school. Alongside this, parents from a cohort of students entering 10 further high schools in the state were recruited to also complete the same informant-based ABS, but were not offered the PMT group sessions.
The commissioner has two main questions: Does the presentation of aggressive behaviours increase as children enter the secondary school system? If so, is there any evidence for the effectiveness of Parent Management Training (PMT) group sessions in curbing the rise of aggressive behaviors during a child’s transition into the secondary school system?

The data is available at https://uoepsy.github.io/data/abs_intervention.csv

Data

variable	description
schoolid	Name of school
ppt	Participant number
age	Age of participant (in years) at observation
interv	Informant-based Aggressive Behaviour Scale (ABS) score (range 0 to 100)
ABS	Whether or not the school was part of the intervention group in which Parent Management Training (PMT) group sessions were offered to the parents

# A tibble: 6 × 5
  schoolid                 ppt   age interv   ABS
  <chr>                  <dbl> <dbl> <fct>  <dbl>
1 Blue River High School     1    12 1       47.5
2 Blue River High School     1    13 1       47.4
3 Blue River High School     1    14 1       53.0
4 Blue River High School     1    15 1       70.7
5 Blue River High School     1    16 1       66.3
6 Blue River High School     1    17 1       NA

Question to Model

(g)lmer(outcome ~ fixed effects + (random effects | grouping structure), family = …)

Outcome

(g)lmer(outcome ~ fixed effects + (random effects | grouping structure), family = …)

What are we interested in explaining/predicting?
- How is this measured?

Fixed Effects

(g)lmer(outcome ~ fixed effects + (random effects | grouping structure), family = …)

What are we interested in explaining/predicting?
- How is this measured?
What variables are we interested in explaining this by?

               schoolid ppt age interv  ABS
 Blue River High School   1  12      1 47.5
 Blue River High School   1  13      1 47.4
 Blue River High School   1  14      1   53
 Blue River High School   1  15      1 70.7
                    ... ... ...    ...  ...

Within & Between Effects

(g)lmer(outcome ~ fixed effects + (random effects | grouping structure), family = …)

Are our questions about the effects of our predictors specifically in reference to group means of predictors?
- “the effect of being higher on \(x\) for a group”
- “the effect of a group being on average higher on \(x\)”

The Grouping Structure

(g)lmer(outcome ~ fixed effects + (random effects | grouping structure), family = …)

In what different ways can we group our data?

               schoolid ppt age interv  ABS
 Blue River High School   1  12      1 47.5
 Blue River High School   1  13      1 47.4
 Blue River High School   1  14      1   53
 Blue River High School   1  15      1 70.7
                    ... ... ...    ...  ...

The Grouping Structure

(g)lmer(outcome ~ fixed effects + (random effects | grouping structure), family = …)

In what different ways can we group our data?
- Of the different ways we can group our data, which groupings are of specific inferential interest?

               schoolid ppt age interv  ABS
 Blue River High School   1  12      1 47.5
 Blue River High School   1  13      1 47.4
 Blue River High School   1  14      1   53
 Blue River High School   1  15      1 70.7
                    ... ... ...    ...  ...

The Grouping Structure

(g)lmer(outcome ~ fixed effects + (random effects | grouping structure), family = …)

In what different ways can we group our data?
- Of the different ways we can group our data, which groupings do we think of as a random sample from a general population of groups?

               schoolid ppt age interv  ABS
 Blue River High School   1  12      1 47.5
 Blue River High School   1  13      1 47.4
 Blue River High School   1  14      1   53
 Blue River High School   1  15      1 70.7
                    ... ... ...    ...  ...

The Grouping Structure

(g)lmer(outcome ~ fixed effects + (random effects | grouping structure), family = …)

In what different ways can we group our data?
- Of the different ways we can group our data, which groupings do we think of as a random sample from a general population of groups?
  - Is there more than one grouping of this sort, and if so, are these groupings nested? Are the labels unique?
  - For each level, how many groups have we sampled?

table(absint$schoolid, absint$ppt)

                                 1 2 3 4 5 6 7 8 ...
  Blue River High School         8 8 8 8 8 8 8 8 ...
  Central Grammar School         8 8 8 8 8 8 8 8 ...
  Central High                   8 8 8 8 8 8 8 8 ...
  Clearwater Charter School      8 8 8 8 8 8 8 8 ...
  Clearwater School of Fine Arts 8 8 8 8 8 8 8 8 ...
  ...                            . . . . . . . . ...

The Grouping Structure

(g)lmer(outcome ~ fixed effects + (random effects | grouping structure), family = …)

In what different ways can we group our data?
- Of the different ways we can group our data, which groupings do we think of as a random sample from a general population of groups?
  - Is there more than one grouping of this sort, and if so, are these groupings nested? Are the labels unique?
  - For each level, how many groups have we sampled?

nrow(absint)

[1] 1568

absint |>
  mutate(schoolppt = interaction(schoolid,ppt)) |>
  summarise(across(everything(), n_distinct))

# A tibble: 1 × 6
  schoolid   ppt   age interv   ABS schoolppt
     <int> <int> <int>  <int> <int>     <int>
1       20    16     8      2   993       196

Random Intercepts and Slopes

(g)lmer(outcome ~ fixed effects + (random effects | grouping structure), family = …)

Which of our fixed effects can vary across our groupings?
- “does a single group have multiple distinct values for \(x\)?”
- “for the data from only one of our groups, can we estimate \(y \sim x\)?”

All the data:

Data from School == “Central High”:

Random Intercepts and Slopes

(g)lmer(outcome ~ fixed effects + (random effects | grouping structure), family = …)

Which of our fixed effects can vary across our groupings?
- “does a single group have multiple distinct values for \(x\)?”
- “for the data from only one of our groups, can we estimate \(y \sim x\)?”

All the data:

Data from School == “Central High”, Participant == “1”:

Our model

(g)lmer(outcome ~ fixed effects + (random effects | grouping structure), family = …)

lmer(ABS ~ age * interv + (1 + age | schoolid ) +

(1 + age | schoolid:ppt )

Our model

(g)lmer(outcome ~ fixed effects + (random effects | grouping structure), family = …)

lmer(ABS ~ ageC * interv + (1 + ageC | schoolid ) +

(1 + ageC | schoolid:ppt )

schoolid	ppt	age	interv	ABS	ageC
Blue River High School	1	12	1	47.5	0
Blue River High School	1	13	1	47.4	1
Blue River High School	1	14	1	53	2
Blue River High School	1	15	1	70.7	3
…	…	…	…	…	…

The research process: model fitting

Model issues

Check for convergence issues & singular fits.

absmod <- lmer(ABS ~ ageC * interv +
                 (1 + ageC | schoolid)+
                 (1 + ageC | schoolid:ppt),
               data = absint)

absmod@optinfo$message

[1] "NLOPT_XTOL_REACHED: Optimization stopped because xtol_rel or xtol_abs (above) was reached."

Assumptions

Check that we’re happy to assume the things we need to assume

plot(absmod,
     type = c("p"), main = "fitted vs residuals")

plot(absmod,
     form = sqrt(abs(resid(.))) ~ fitted(.),
     type = c("p"), main="scale-location")

Assumptions

qqnorm(resid(absmod), main = "level one residuals")
qqline(resid(absmod))

qqnorm(ranef(absmod)$schoolid$`(Intercept)`, main="School level random intercepts")
qqline(ranef(absmod)$schoolid$`(Intercept)`)
qqnorm(ranef(absmod)$schoolid$ageC, main="School level random slopes of age")
qqline(ranef(absmod)$schoolid$ageC)

qqnorm(ranef(absmod)$`schoolid:ppt`$`(Intercept)`, main="Child level random intercepts")
qqline(ranef(absmod)$`schoolid:ppt`$`(Intercept)`)
qqnorm(ranef(absmod)$`schoolid:ppt`$ageC, main="Child level random slopes of age")
qqline(ranef(absmod)$`schoolid:ppt`$ageC)

Assumptions

Do tests if you want, but beware. Multilevel data tends to have bigger \(n\), and these tests are overly sensitive.

Personally, I prefer plots.

[1] "Shapiro-Wilk normality test resid(absmod) W=1, p=0.98"
[2] "Shapiro-Wilk normality test ranef(absmod)$schoolid$`(Intercept)` W=0.97, p=0.69"
[3] "Shapiro-Wilk normality test ranef(absmod)$schoolid$ageC W=0.95, p=0.34"
[4] "Shapiro-Wilk normality test ranef(absmod)$`schoolid:ppt`$`(Intercept)` W=1, p=0.95"
[5] "Shapiro-Wilk normality test ranef(absmod)$`schoolid:ppt`$ageC W=0.99, p=0.44"

Diagnostics

The research process: inference

Inference

Options

Model comparison
Parameters

Methods

satterthwaite df:
- lmerTest::lmer() and pbkrtest::SATmodcomp(model2,model1)
likelihood ratio tests:
- anova(model1, model2, ...)

kenward-rogers df
likelihood profile confidence intervals
parametric bootstrap
residual bootstrap
case bootstrap

Inference

Options

Model comparison
Parameters

fixef(absmod)

 (Intercept)         ageC      interv1 ageC:interv1
       46.46         1.67         1.10        -1.35

Inference

absmodp <- lmerTest::lmer(ABS ~ ageC * interv +
                 (1 + ageC | schoolid)+
                 (1 + ageC | schoolid:ppt),
               data = absint)

summary(absmodp)

Linear mixed model fit by REML. t-tests use Satterthwaite's method [
lmerModLmerTest]
Formula:
ABS ~ ageC * interv + (1 + ageC | schoolid) + (1 + ageC | schoolid:ppt)
   Data: absint

REML criterion at convergence: 7132

Scaled residuals:
    Min      1Q  Median      3Q     Max
-3.0748 -0.5767  0.0061  0.5712  3.0350

Random effects:
 Groups       Name        Variance Std.Dev. Corr
 schoolid:ppt (Intercept) 17.379   4.169
              ageC         4.913   2.217    0.69
 schoolid     (Intercept)  2.505   1.583
              ageC         0.448   0.669    0.26
 Residual                 49.465   7.033
Number of obs: 992, groups:  schoolid:ppt, 196; schoolid, 20

Fixed effects:
             Estimate Std. Error     df t value Pr(>|t|)
(Intercept)    46.461      0.862 17.914   53.88   <2e-16 ***
ageC            1.673      0.385 20.361    4.34   0.0003 ***
interv1         1.096      1.207 16.818    0.91   0.3766
ageC:interv1   -1.352      0.543 19.560   -2.49   0.0218 *
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Correlation of Fixed Effects:
            (Intr) ageC   intrv1
ageC         0.003
interv1     -0.714 -0.002
ageC:intrv1 -0.002 -0.709 -0.003

Interpretation: Fixed effects

fixef(absmod)

 (Intercept)         ageC      interv1 ageC:interv1
       46.46         1.67         1.10        -1.35

MAP IT TO THE PLOT!!!!

Interpretation: Random effects

Don’t just ignore. They add context to results

e.g. they can give a descriptive answer to “should we expect all children get more aggressive in secondary school?”
often it’s about the amount of variability relative to the corresponding fixed effect.
- a fixed slope of 0.5 with groups varying in slopes with an SD of 1
- a fixed slope of 10 with groups varying in slopes with an SD of 1

Interpretation: Random effects

Don’t just ignore. They add context to results

e.g. they can give a descriptive answer to “should we expect all children get more aggressive in secondary school?”

The research process: reporting

Reporting the analysis strategy

Data cleaning outlier/data removal, transformations prior to analysis.
Unplanned transformations and data removal which are carried out in order to meet assumptions.

Specify all fixed effects (explanatory variables & covariates).
Link them to explicitly stated research questions/hypotheses.
Explicitly state the hierarchical structure of the data and of the model.
Specify random effects according to the sampling units (schools/children etc) with which they interact.

Planned structure of random effects to be fitted
Procedure to be used to decide on final random effect structure.

State clearly the relevant test/comparison/parameter estimate of interest.
Link to explicitly stated research questions/hypotheses.
- Method you plan to use to conduct inference (e.g. LRT, kr, bootstrap)
- Any model comparisons should be clearly stated so that the reader understands the structure of both models being compared.

Reporting results

Model fitting (strategy? results? ??)

Software packages and versions used to fit the model(s), along with the estimation method (ML/REML) and optimiser used.
If proposed model failed to converge:
- steps leading to final converging model.
- final model structure

Results

For final model:

all parameter estimates for fixed effects.
- coefficients
- associated standard errors, test statistics, df and p-values (if used, or CIs if preferred)
random effects
- standard deviation and/or variance for each random effect
- correlations/covariances if modelled
- residual variance/standard deviation

Reporting: text and tables

Tables help a lot!

library(sjPlot)
tab_model(absmod,
          show.ci = 0.95,
          show.stat = TRUE/FALSE,
          show.se = TRUE/FALSE,
          show.df = TRUE/FALSE,
          show.re.var = TRUE/FALSE,
          df.method="satterthwaite")

But they are not a substitute for interpretation

Key parameters of interest should also be included in-text, with interpretation.

	ABS
Predictors	Estimates	Statistic	p	df
(Intercept)	46.46	53.88	<0.001	17.91
ageC	1.67	4.34	<0.001	20.36
interv [1]	1.10	0.91	0.377	16.82
ageC × interv [1]	-1.35	-2.49	0.022	19.56
Random Effects
σ²	49.47
τ₀₀ _schoolid:ppt	17.38
τ₀₀ _schoolid	2.50
τ₁₁ _{schoolid:ppt.ageC}	4.91
τ₁₁ _{schoolid.ageC}	0.45
ρ₀₁ _schoolid:ppt	0.69
ρ₀₁ _schoolid	0.26
ICC	0.64
N _schoolid	20
N _ppt	16
Observations	992
Marginal R² / Conditional R²	0.034 / 0.650

Visualisations

fixef(absmod)

 (Intercept)         ageC      interv1 ageC:interv1
       46.46         1.67         1.10        -1.35

library(effects)
efplot <- effect("ageC*interv", absmod) |>
  as.data.frame()

ggplot(efplot, aes(x = ageC, y = fit,
                   col = interv, fill = interv)) +
  geom_line()+
  geom_ribbon(aes(ymin = lower, ymax = upper),
              alpha=.3) +
  scale_x_continuous("Age",breaks=0:7,labels=12:19)

Visualisations - Results in context

fixef(absmod)

 (Intercept)         ageC      interv1 ageC:interv1
       46.46         1.67         1.10        -1.35

VarCorr(absmod)

 Groups       Name        Std.Dev. Corr
 schoolid:ppt (Intercept) 4.169
              ageC        2.217    0.69
 schoolid     (Intercept) 1.583
              ageC        0.669    0.26
 Residual                 7.033

library(effects)
library(broom.mixed)
efplot <- effect("ageC*interv", absmod) |>
  as.data.frame()

augment(absmod) |>
  mutate(uppt = paste0(schoolid, ppt)) |>
  ggplot(aes(x=ageC, col = interv)) +
  geom_line(aes(y = .fitted, group = uppt), alpha=.1) +
  geom_line(data = efplot, aes(y = fit, col= interv)) +
  geom_ribbon(data = efplot, aes(y = fit,
                                 ymin = lower, ymax = upper,
                                 fill = interv), alpha = .3) +
  scale_x_continuous("Age",breaks=0:7,labels=12:19)

Visualising - Results in context

But plotting manually gives you more control:

QR CODE!!!

End

This week

Tasks

Complete readings

Attend your lab and work together on the exercises

Complete the weekly quiz

Support

Piazza forum!

Office hours (see Learn page for details)
