Multilevel Models

Data Analysis for Psychology in R 3

Josiah King

Psychology, PPLS

University of Edinburgh

Overview

multilevel modelling working with group structured data	regression refresher
	introducing multilevel models
	more complex groupings
	centering, assumptions, and diagnostics
	recap
factor analysis working with multi-item measures	what is a psychometric test?
	using composite scores to simplify data (PCA)
	uncovering underlying constructs (EFA)
	more EFA
	recap

This week

• introduction to the multilevel/mixed effects model
  • model structure
  • multilevel models in R

Introducing the multi-level model

Terminology

(size weighted by hits on google scholar)

single level regression

\[ \begin{align} & \text{for observation }j \\ \quad \\ & \text{ } \\ & \color{red}{y_j} = \color{blue}{b_0 \cdot{} 1 \; + \; b_1 \cdot{} x_{j} } + \varepsilon_j \\ \end{align} \]

for observation \(j\),

their value of \(\color{red}{y}\) =
  some number (\(\color{blue}{b_0}\)) +
  some amount (\(\color{blue}{b_1}\)) times their value of \(x\) +
  their residual \(\varepsilon_j\)

multi-level regression

\[ \begin{align} & \text{for observation }j\text{ in group }i \\ \quad \\ & \text{Level 1:} \\ & \color{red}{y_{ij}} = \color{blue}{b_{0i} \cdot 1 + b_{1} \cdot x_{ij}} + \varepsilon_{ij} \\ \end{align} \]

for observation \(j\) from group \(i\),

their value of \(\color{red}{y}\) =
  some number for group \(i\) (\(\color{blue}{b_{0i}}\)) +
  some amount (\(\color{blue}{b_1}\)) times their value of \(x\) +
  their residual \(\varepsilon_{ij}\)

multi-level regression

\[ \begin{align} & \text{for observation }j\text{ in group }i \\ \quad \\ & \text{Level 1:} \\ & \color{red}{y_{ij}} = \color{blue}{b_{0i} \cdot 1 + b_{1} \cdot x_{ij}} + \varepsilon_{ij} \\ & \quad \\ & \text{Level 2:} \\ & \color{blue}{b_{0i}} = \gamma_{00} + \color{orange}{\zeta_{0i}} \\ \quad \\ \end{align} \]

for observation \(j\) from group \(i\),

their value of \(\color{red}{y}\) =
  some number for group \(i\) (\(\color{blue}{b_{0i}}\)) +
  some amount (\(\color{blue}{b_1}\)) times their value of \(x\) +
  their residual \(\varepsilon_{ij}\)

group \(i\)’s intercept (\(\color{blue}{b_{0i}}\)) =
  the intercept for the average of the population of groups (\(\gamma_{00}\)) +
  the deviation of group \(i\) (\(\color{orange}{\zeta_{0i}}\)) from \(\gamma_{00}\)

multi-level regression

\[ \begin{align} & \text{for observation }j\text{ in group }i \\ \quad \\ & \text{Level 1:} \\ & \color{red}{y_{ij}} = \color{blue}{b_{0i} \cdot 1 + b_{1} \cdot x_{ij}} + \varepsilon_{ij} \\ & \quad \\ & \text{Level 2:} \\ & \color{blue}{b_{0i}} = \gamma_{00} + \color{orange}{\zeta_{0i}} \\ \quad \\ & \color{orange}{\zeta_{0i}} \sim N(0, \color{orange}{\sigma_0}) \\ & \varepsilon_{ij} \sim N(0, \sigma_\varepsilon) \\ \end{align} \]

for observation \(j\) from group \(i\),

their value of \(\color{red}{y}\) =
  some number for group \(i\) (\(\color{blue}{b_{0i}}\)) +
  some amount (\(\color{blue}{b_1}\)) times their value of \(x\) +
  their residual \(\varepsilon_{ij}\)

group \(i\)’s intercept (\(\color{blue}{b_{0i}}\)) =
  the intercept for the average of the population of groups (\(\gamma_{00}\)) +
  the deviation of group \(i\) (\(\color{orange}{\zeta_{0i}}\)) from \(\gamma_{00}\)


We are now assuming \(\color{orange}{\zeta_0}\) and \(\varepsilon\) to be normally distributed with a mean of 0, and we denote their variances as \(\color{orange}{\sigma_0^2}\) and \(\sigma_\varepsilon^2\) respectively.

multi-level (mixed-effects) regression

Sometimes, you will see the levels collapsed into one equation, as it might make for more intuitive reading:

\[ \begin{align} & \color{red}{y_{ij}} = \overbrace{(\gamma_{00} + \color{orange}{\zeta_{0i}})}^{\color{blue}{b_{0i}}} \cdot 1 + \color{blue}{b_{1} \cdot x_{ij}} + \varepsilon_{ij} \\ & \quad \\ & \color{orange}{\zeta_{0i}} \sim N(0, \sigma_0) \\ & \varepsilon_{ij} \sim N(0, \sigma_\varepsilon) \\ \end{align} \]

The intercept \(\color{blue}{b_{0i}}\) is a “mix” of two things:

• the fixed number \(\gamma_{00}\)
• group deviations \(\color{orange}{\zeta_{0i}}\)

other notation to be aware of

• Many people use the symbol \(u\) as the random part - i.e. in place of \(\zeta\)

• Sometimes people use \(b_{00}\) as the fixed part - i.e. instead of \(\gamma_{00}\)

• In various resources, you are likely to see \(\alpha\) used to denote the intercept instead of \(b_0\)

NOTE

• You do not have to write equations for the DAPR3 report or exam.

• As models get more complex, it is much easier to explain your model structure in words rather than equations

  • “[outcome] was modelled using a linear multilevel model, with fixed effects of [predictors] and by-[grouping] random intercepts.”

• We’re still going to go through them in lectures & readings because they provide a clear scaffolding for learning how the models work

Building up the idea

back to our example

Are older people more satisfied with life? 112 people from 12 different dwellings (cities/towns) in Scotland. Information on their ages and some measure of life satisfaction.

d3 <- read_csv("https://uoepsy.github.io/data/lmm_lifesatscot.csv")
head(d3)

# A tibble: 6 × 4
    age lifesat dwelling size
  <dbl>   <dbl> <chr>    <chr>
1    40      31 Aberdeen >100k
2    45      56 Glasgow  >100k
3    40      51 Glasgow  >100k
4    40      55 Dundee   >100k
5    40      41 Dundee   >100k
6    55      69 Perth    <100k

estimate the differences

the fixed effects approach:

mod <- lm(lifesat ~ 1 + dwelling + age, data = d3)
summary(mod)

Call:
lm(formula = lifesat ~ 1 + dwelling + age, data = d3)

Residuals:
    Min      1Q  Median      3Q     Max
-17.144  -5.463  -0.772   6.074  20.432

Coefficients:
                     Estimate Std. Error t value Pr(>|t|)
(Intercept)           15.3330     4.1493    3.70  0.00036 ***
dwellingDumfries       8.0741     3.8483    2.10  0.03844 *
dwellingDundee        15.9882     3.8236    4.18  6.3e-05 ***
dwellingDunfermline   26.2600     3.8910    6.75  1.0e-09 ***
dwellingEdinburgh     12.6929     3.8195    3.32  0.00125 **
dwellingFort William   1.3577     3.8999    0.35  0.72849
dwellingGlasgow       18.2906     3.8213    4.79  5.9e-06 ***
dwellingInverness      5.0718     3.8542    1.32  0.19124
dwellingKirkcaldy    -22.5918     6.8344   -3.31  0.00132 **
dwellingPaisley        1.6647     3.8748    0.43  0.66840
dwellingPerth         14.1953     3.8182    3.72  0.00033 ***
dwellingStirling      17.6765     3.8429    4.60  1.3e-05 ***
age                    0.6047     0.0888    6.81  7.6e-10 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 8.54 on 99 degrees of freedom
Multiple R-squared:  0.622, Adjusted R-squared:  0.577
F-statistic: 13.6 on 12 and 99 DF,  p-value: 3.77e-16

estimate the differences

the fixed effects approach:

mod <- lm(lifesat ~ 1 + dwelling + age, data = d3)
summary(mod)

Call:
lm(formula = lifesat ~ 1 + dwelling + age, data = d3)

Residuals:
    Min      1Q  Median      3Q     Max
-17.144  -5.463  -0.772   6.074  20.432

Coefficients:
                     Estimate Std. Error t value Pr(>|t|)
(Intercept)           15.3330     4.1493    3.70  0.00036 ***
dwellingDumfries       8.0741     3.8483    2.10  0.03844 *
dwellingDundee        15.9882     3.8236    4.18  6.3e-05 ***
dwellingDunfermline   26.2600     3.8910    6.75  1.0e-09 ***
dwellingEdinburgh     12.6929     3.8195    3.32  0.00125 **
dwellingFort William   1.3577     3.8999    0.35  0.72849
dwellingGlasgow       18.2906     3.8213    4.79  5.9e-06 ***
dwellingInverness      5.0718     3.8542    1.32  0.19124
dwellingKirkcaldy    -22.5918     6.8344   -3.31  0.00132 **
dwellingPaisley        1.6647     3.8748    0.43  0.66840
dwellingPerth         14.1953     3.8182    3.72  0.00033 ***
dwellingStirling      17.6765     3.8429    4.60  1.3e-05 ***
age                    0.6047     0.0888    6.81  7.6e-10 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 8.54 on 99 degrees of freedom
Multiple R-squared:  0.622, Adjusted R-squared:  0.577
F-statistic: 13.6 on 12 and 99 DF,  p-value: 3.77e-16

estimate the differences

the fixed effects approach:

mod <- lm(lifesat ~ 1 + dwelling + age, data = d3)
summary(mod)

Call:
lm(formula = lifesat ~ 1 + dwelling + age, data = d3)

Residuals:
    Min      1Q  Median      3Q     Max
-17.144  -5.463  -0.772   6.074  20.432

Coefficients:
                     Estimate Std. Error t value Pr(>|t|)
(Intercept)           15.3330     4.1493    3.70  0.00036 ***
dwellingDumfries       8.0741     3.8483    2.10  0.03844 *
dwellingDundee        15.9882     3.8236    4.18  6.3e-05 ***
dwellingDunfermline   26.2600     3.8910    6.75  1.0e-09 ***
dwellingEdinburgh     12.6929     3.8195    3.32  0.00125 **
dwellingFort William   1.3577     3.8999    0.35  0.72849
dwellingGlasgow       18.2906     3.8213    4.79  5.9e-06 ***
dwellingInverness      5.0718     3.8542    1.32  0.19124
dwellingKirkcaldy    -22.5918     6.8344   -3.31  0.00132 **
dwellingPaisley        1.6647     3.8748    0.43  0.66840
dwellingPerth         14.1953     3.8182    3.72  0.00033 ***
dwellingStirling      17.6765     3.8429    4.60  1.3e-05 ***
age                    0.6047     0.0888    6.81  7.6e-10 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 8.54 on 99 degrees of freedom
Multiple R-squared:  0.622, Adjusted R-squared:  0.577
F-statistic: 13.6 on 12 and 99 DF,  p-value: 3.77e-16

estimate the differences

the fixed effects approach:

mod <- lm(lifesat ~ 1 + dwelling + age, data = d3)
summary(mod)

Call:
lm(formula = lifesat ~ 1 + dwelling + age, data = d3)

Residuals:
    Min      1Q  Median      3Q     Max
-17.144  -5.463  -0.772   6.074  20.432

Coefficients:
                     Estimate Std. Error t value Pr(>|t|)
(Intercept)           15.3330     4.1493    3.70  0.00036 ***
dwellingDumfries       8.0741     3.8483    2.10  0.03844 *
dwellingDundee        15.9882     3.8236    4.18  6.3e-05 ***
dwellingDunfermline   26.2600     3.8910    6.75  1.0e-09 ***
dwellingEdinburgh     12.6929     3.8195    3.32  0.00125 **
dwellingFort William   1.3577     3.8999    0.35  0.72849
dwellingGlasgow       18.2906     3.8213    4.79  5.9e-06 ***
dwellingInverness      5.0718     3.8542    1.32  0.19124
dwellingKirkcaldy    -22.5918     6.8344   -3.31  0.00132 **
dwellingPaisley        1.6647     3.8748    0.43  0.66840
dwellingPerth         14.1953     3.8182    3.72  0.00033 ***
dwellingStirling      17.6765     3.8429    4.60  1.3e-05 ***
age                    0.6047     0.0888    6.81  7.6e-10 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 8.54 on 99 degrees of freedom
Multiple R-squared:  0.622, Adjusted R-squared:  0.577
F-statistic: 13.6 on 12 and 99 DF,  p-value: 3.77e-16

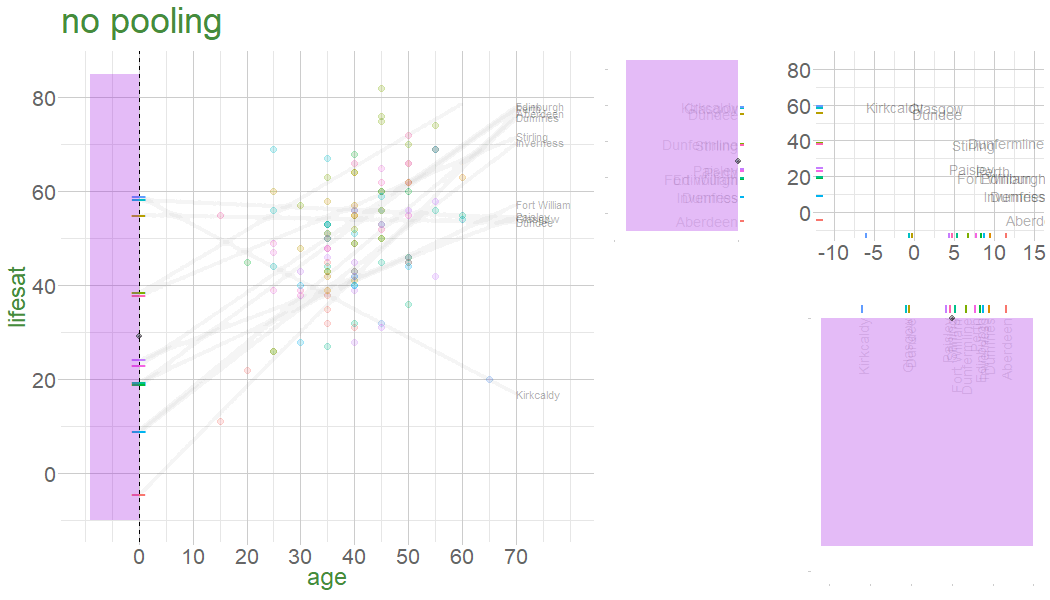

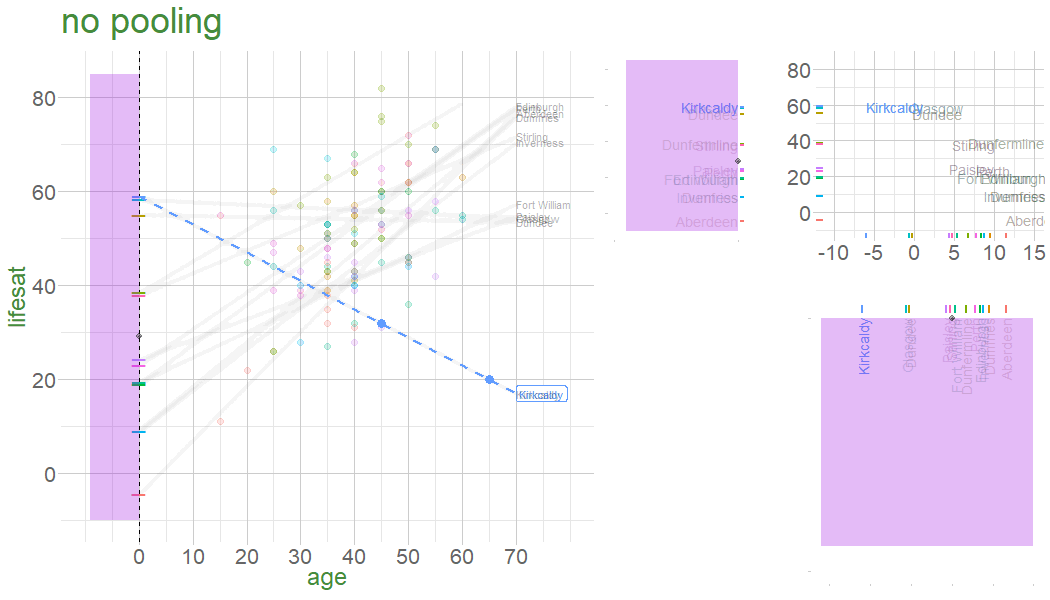

deviations from an average

Group deviations from an overall average

deviations from an average

Group deviations from an overall average

deviations from an average

Group deviations from an overall average

the multilevel model: a model of models

modelling group-level variability, rather than estimating group differences.

the multilevel model

\[ \begin{align} & \text{for observation }j\text{ in group }i \\ \quad \\ & \text{Level 1:} \\ & \color{red}{y_{ij}} = \color{blue}{b_{0i} \cdot 1 + b_{1} \cdot x_{ij}} + \varepsilon_{ij} \\ & \text{Level 2:} \\ & \color{blue}{b_{0i}} = \gamma_{00} + \color{orange}{\zeta_{0i}} \\ \quad \\ & \color{orange}{\zeta_{0i}} \sim N(0,\color{orange}{\sigma_0}) \\ & \varepsilon_{ij} \sim N(0,\sigma_\varepsilon) \\ \end{align} \]

the multilevel model

\[ \begin{align} & \text{for observation }j\text{ in }\textbf{Edinburgh} \\ \quad \\ & \text{Level 1:} \\ & \color{red}{y_{Edb,j}} = \color{blue}{b_{0Edb} \cdot 1 + b_{1} \cdot x_{Edb,j}} + \varepsilon_{Edb,j} \\ & \text{Level 2:} \\ & \color{blue}{b_{0Edb}} = \gamma_{00} + \color{orange}{\zeta_{0Edb}} \\ \quad \\ & \color{orange}{\zeta_{0i}} \sim N(0,\color{orange}{\sigma_0}) \\ & \varepsilon_{ij} \sim N(0,\sigma_\varepsilon) \\ \end{align} \]

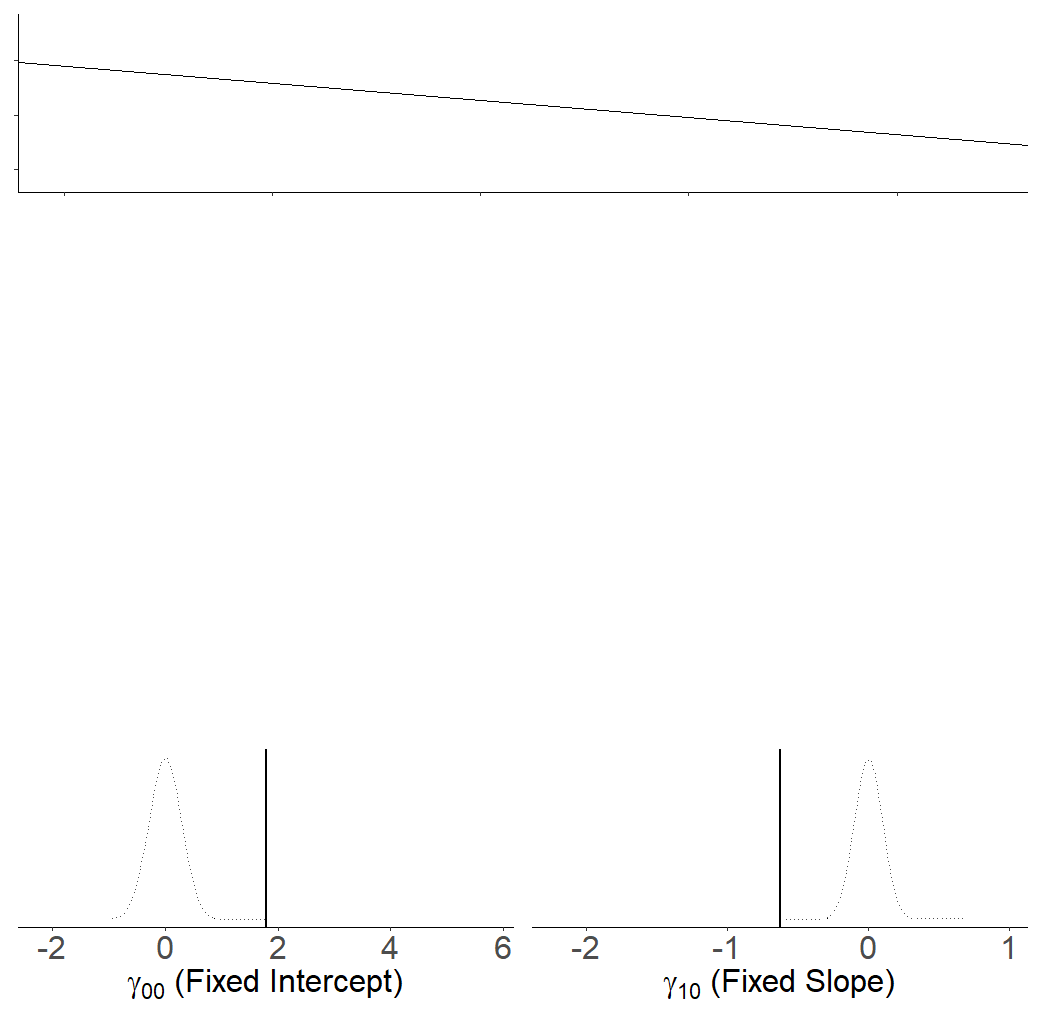

fixed and random

\[ \begin{align} & \text{Level 1:} \\ & \color{red}{y_{ij}} = \color{blue}{b_{0i} \cdot 1 +} \overbrace{\color{blue}{b_{1}}}^{\textrm{fixed}} \color{blue}{ \cdot x_{ij}} + \varepsilon_{ij} \\ & \text{Level 2:} \\ & \color{blue}{b_{0i}} = \underbrace{\gamma_{00}}_{\textrm{fixed}} + \color{orange}{\underbrace{\zeta_{0i}}_{\textrm{random}}} \\ \quad \\ \end{align} \]

\[ \color{red}{y_{ij}} = (\underbrace{\gamma_{00}}_{\textrm{fixed}} + \color{orange}{\underbrace{\zeta_{0i}}_{\textrm{random}}}) \cdot 1 + \underbrace{b_1}_{\textrm{fixed}} \cdot x_{ij} + \varepsilon_{ij} \\ \]

The \(\color{orange}{\zeta}\) components also get termed the “random effects” part of the model, Hence names like “random effects model”, etc.

\(\color{orange}{\zeta_i}\) is “random” because considered a random sample from larger population such that \(\color{orange}{\zeta_{0i}} \sim N(0, \color{orange}{\sigma^2_0})\).

fixed and random

Should variable g be fixed or random?

	Repetition: If the experiment were repeated:	Desired inference: The conclusions refer to:
Fixed \(y\,\sim\,~\,...\, +\, g\)	Same groups would be used	The groups used
Random \(y\,\sim\,...\,+\,(\,... |\,g)\)	Different groups would be used	A population from which the groups used are just a (random) sample

If we only have a very small number of groups, estimating variance components may be unstable, and partialling out group-differences as fixed effects may be preferable.

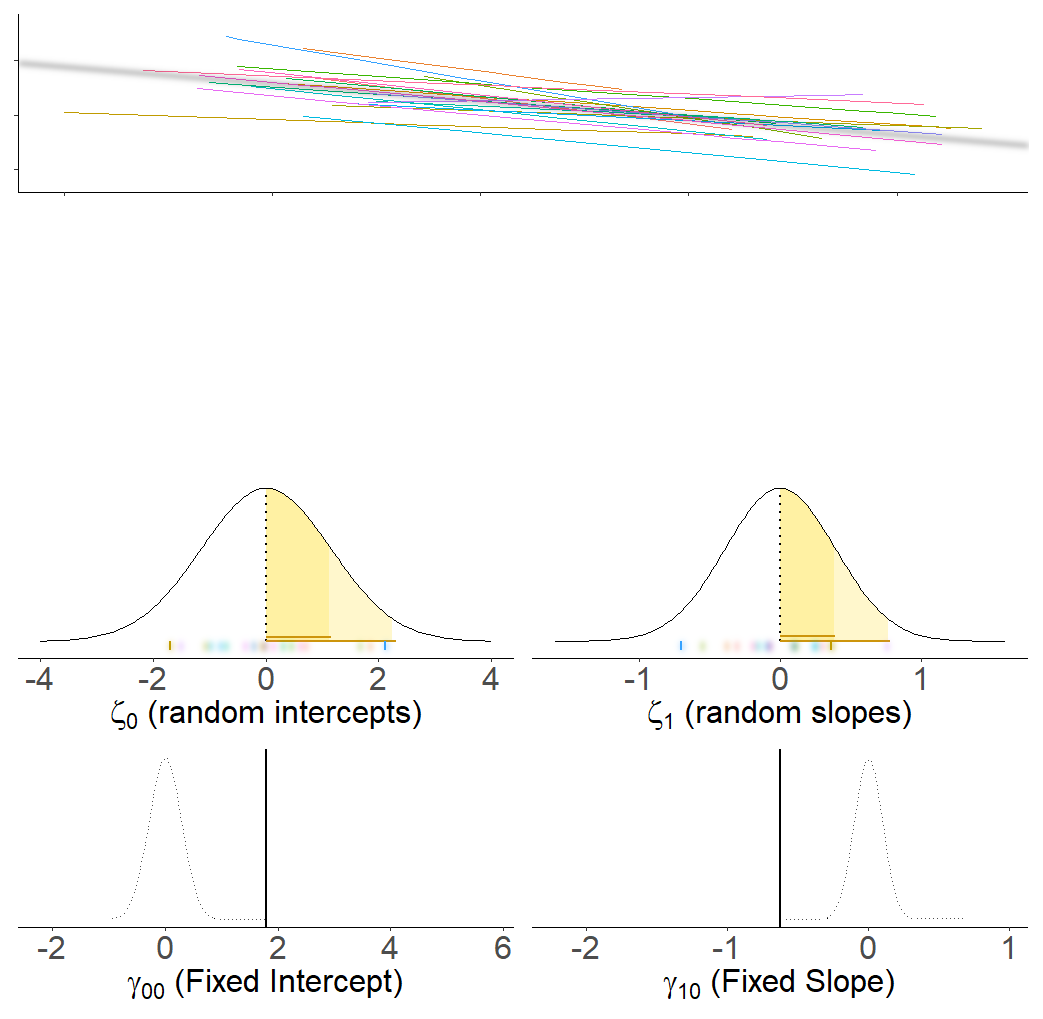

random intercepts

\[ \begin{align} & \text{for observation }j\text{ in group }i \\ \quad \\ & \text{Level 1:} \\ & \color{red}{y_{ij}} = \color{blue}{b_{0i} \cdot 1 + b_{1} \cdot x_{ij}} + \varepsilon_{ij} \\ & \quad \\ & \text{Level 2:} \\ & \color{blue}{b_{0i}} = \gamma_{00} + \color{orange}{\zeta_{0i}} \\ \end{align} \]

for observation \(j\) from group \(i\),

their value of \(\color{red}{y}\) =
  some number for group \(i\) (\(\color{blue}{b_{0i}}\)) +
  some amount (\(\color{blue}{b_1}\)) times their value of \(x\) +
  their residual \(\varepsilon_{ij}\)

group \(i\)’s intercept (\(\color{blue}{b_{0i}}\)) =
  the intercept for the average of the population of groups (\(\gamma_{00}\)) +
  the deviation of group \(i\) (\(\color{orange}{\zeta_{0i}}\)) from \(\gamma_{00}\)

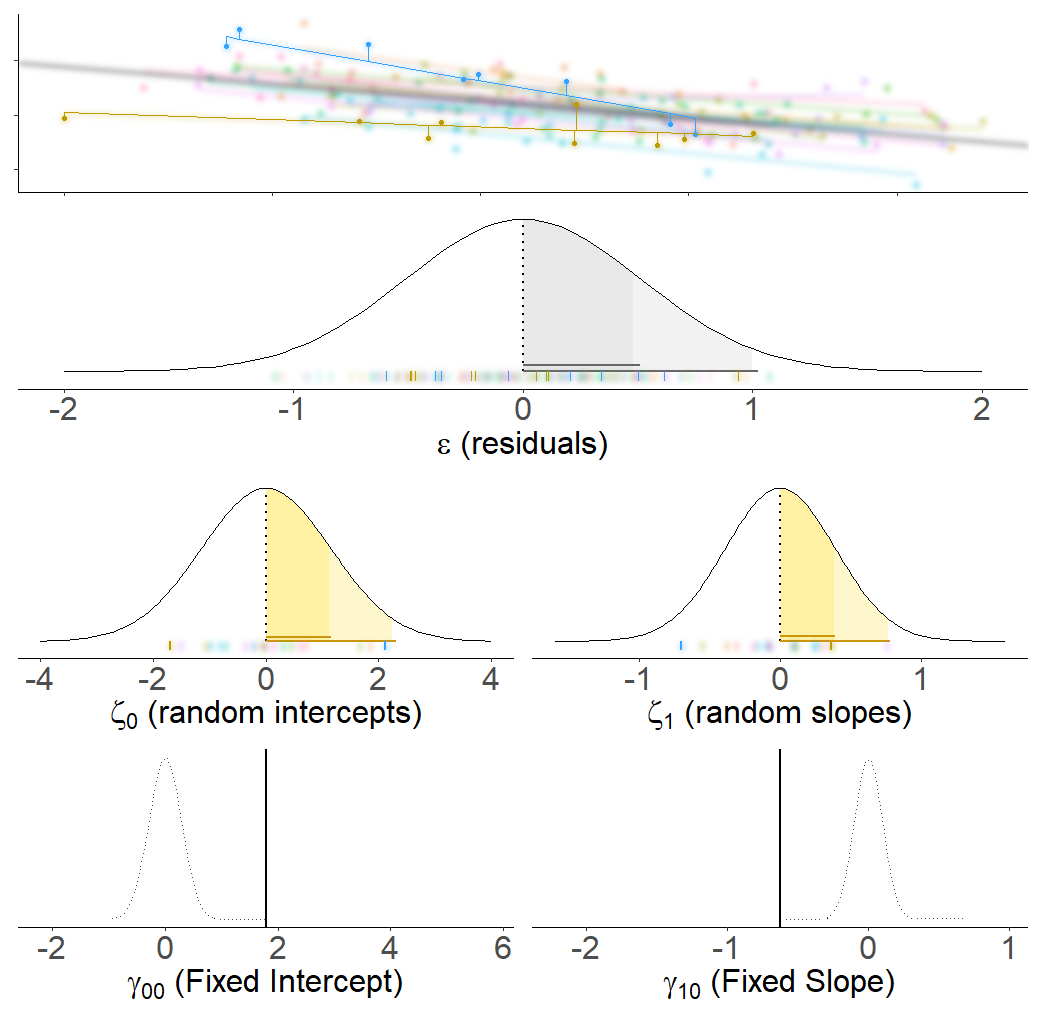

random slopes

\[ \begin{align} & \text{for observation }j\text{ in group }i \\ \quad \\ & \text{Level 1:} \\ & \color{red}{y_{ij}} = \color{blue}{b_{0i} \cdot 1 + b_{1i} \cdot x_{ij}} + \varepsilon_{ij} \\ & \quad \\ & \text{Level 2:} \\ & \color{blue}{b_{0i}} = \gamma_{00} + \color{orange}{\zeta_{0i}} \\ & \color{blue}{b_{1i}} = \gamma_{10} + \color{orange}{\zeta_{1i}} \\ \end{align} \]

for observation \(j\) from group \(i\),

their value of \(\color{red}{y}\) =
  some number for group \(i\) (\(\color{blue}{b_{0i}}\)) +
  some amount for group \(i\) (\(\color{blue}{b_{1i}}\)) times their value of \(x\) +
  their residual \(\varepsilon_{ij}\)

group \(i\)’s intercept (\(\color{blue}{b_{0i}}\)) =
  the intercept for the average of the population of groups (\(\gamma_{00}\)) +
  the deviation of group \(i\) (\(\color{orange}{\zeta_{0i}}\)) from \(\gamma_{00}\)
group \(i\)’s slope (\(\color{blue}{b_{1i}}\)) =
  the slope for the average of the population of groups (\(\gamma_{10}\)) +
  the deviation of group \(i\) (\(\color{orange}{\zeta_{1i}}\)) from \(\gamma_{10}\)

random slopes

\[ \begin{align} & \text{for observation }j\text{ in group }i \\ \quad \\ & \text{Level 1:} \\ & \color{red}{y_{ij}} = \color{blue}{b_{0i} \cdot 1 + b_{1i} \cdot x_{ij}} + \varepsilon_{ij} \\ & \quad \\ & \text{Level 2:} \\ & \color{blue}{b_{0i}} = \gamma_{00} + \color{orange}{\zeta_{0i}} \\ & \color{blue}{b_{1i}} = \gamma_{10} + \color{orange}{\zeta_{1i}} \\ & \qquad \\ & \qquad \\ & \begin{bmatrix} \color{orange}{\zeta_{0i}} \\ \color{orange}{\zeta_{1i}} \end{bmatrix} \sim N \left( \begin{bmatrix} 0 \\ 0 \end{bmatrix}, \begin{bmatrix} \color{orange}{\sigma_0} & \color{orange}{\rho_{01}} \\ \color{orange}{\rho_{01}} & \color{orange}{\sigma_1} \end{bmatrix} \right) \\ & \varepsilon_{ij} \sim N(0,\sigma_\varepsilon) \\ \end{align} \]

for observation \(j\) from group \(i\),

their value of \(\color{red}{y}\) =
  some number for group \(i\) (\(\color{blue}{b_{0i}}\)) +
  some amount for group \(i\) (\(\color{blue}{b_{1i}}\)) times their value of \(x\) +
  their residual \(\varepsilon_{ij}\)

group \(i\)’s intercept (\(\color{blue}{b_{0i}}\)) =
  the intercept for the average of the population of groups (\(\gamma_{00}\)) +
  the deviation of group \(i\) (\(\color{orange}{\zeta_{0i}}\)) from \(\gamma_{00}\)
group \(i\)’s slope (\(\color{blue}{b_{1i}}\)) =
  the slope for the average of the population of groups (\(\gamma_{10}\)) +
  the deviation of group \(i\) (\(\color{orange}{\zeta_{1i}}\)) from \(\gamma_{10}\)

group deviations for intercepts and slopes are normally distributed with mean of 0 and standard deviations of \(\color{orange}{\sigma_0}\) and \(\color{orange}{\sigma_1}\) respectively, and with a correlation of \(\color{orange}{\rho_{01}}\).

random intercepts, random slopes

the multilevel model: partial pooling

• In a no-pooling approach, information is not combined in anyway (data from cluster \(i\) contributes to the slope for cluster \(i\), but nothing else.
  • Information from Glasgow, Edinburgh, Perth, Dundee etc doesn’t influence what we think about Stirling

• In the multilevel model, we model group deviations as normally distributed with a variance of \(\color{orange}{\sigma^2_b}\).

• clusters’ contributions to the model depend on:
  • \(\color{orange}{\sigma^2_b}\) relative to \(\sigma^2_\varepsilon\)
  • the amount of data in each cluster

the multilevel model: partial pooling

• In a no-pooling approach, information is not combined in anyway (data from cluster \(i\) contributes to the slope for cluster \(i\), but nothing else.
  • Information from Glasgow, Edinburgh, Perth, Dundee etc doesn’t influence what we think about Stirling

• In the multilevel model, we model group deviations as normally distributed with a variance of \(\color{orange}{\sigma^2_b}\).

• clusters’ contributions to the model depend on:
  • how distinct the clustering is
  • how big a cluster is

• cluster specific predictions are shrunk towards the average depending on:
  • how distinct the clustering is
  • how big a cluster is

the multilevel model: partial pooling

the multilevel model: partial pooling

the multilevel model: partial pooling

the multilevel model: partial pooling

random slopes

\[ \begin{align} & \text{for observation }j\text{ in group }i \\ \quad \\ & \text{Level 1:} \\ & \color{red}{y_{ij}} = \color{blue}{b_{0i} \cdot 1 + b_{1i} \cdot x_{ij}} + \varepsilon_{ij} \\ & \quad \\ & \text{Level 2:} \\ & \color{blue}{b_{0i}} = \gamma_{00} + \color{orange}{\zeta_{0i}} \\ & \color{blue}{b_{1i}} = \gamma_{10} + \color{orange}{\zeta_{1i}} \\ & \qquad \\ & \qquad \\ & \begin{bmatrix} \color{orange}{\zeta_{0i}} \\ \color{orange}{\zeta_{1i}} \end{bmatrix} \sim N \left( \begin{bmatrix} 0 \\ 0 \end{bmatrix}, \begin{bmatrix} \color{orange}{\sigma_0} & \color{orange}{\rho_{01}} \\ \color{orange}{\rho_{01}} & \color{orange}{\sigma_1} \end{bmatrix} \right) \\ & \varepsilon_{ij} \sim N(0,\sigma_\varepsilon) \\ \end{align} \]

the benefit

\[ \begin{align} & \text{for person }j\text{ in dwelling }i \\ \quad \\ & \text{Level 1 (person):} \\ & \color{red}{life\_sat_{ij}} = \color{blue}{b_{0i} \cdot 1 + b_{1i} \cdot age_{ij}} + \varepsilon_{ij} \\ & \quad \\ & \text{Level 2 (dwelling):} \\ & \color{blue}{b_{0i}} = \gamma_{00} + \color{orange}{\zeta_{0i}} \\ & \color{blue}{b_{1i}} = \gamma_{10} + \color{orange}{\zeta_{1i}} \\ & \qquad \\ & \begin{bmatrix} \color{orange}{\zeta_{0i}} \\ \color{orange}{\zeta_{1i}} \end{bmatrix} \sim N \left( \begin{bmatrix} 0 \\ 0 \end{bmatrix}, \begin{bmatrix} \color{orange}{\sigma_0} & \color{orange}{\rho_{01}} \\ \color{orange}{\rho_{01}} & \color{orange}{\sigma_1} \end{bmatrix} \right) \\ & \varepsilon_{ij} \sim N(0,\sigma_\varepsilon) \\ \end{align} \]

the benefit

\[ \begin{align} & \text{for person }j\text{ in dwelling }i \\ \quad \\ & \text{Level 1 (person):} \\ & \color{red}{life\_sat_{ij}} = \color{blue}{b_{0i} \cdot 1 + b_{1i} \cdot age_{ij}} + \varepsilon_{ij} \\ & \quad \\ & \text{Level 2 (dwelling):} \\ & \color{blue}{b_{0i}} = \gamma_{00} + \gamma_{01} \cdot DwellingSize_i + \color{orange}{\zeta_{0i}} \\ & \color{blue}{b_{1i}} = \gamma_{10} + \color{orange}{\zeta_{1i}} \\ & \qquad \\ & \begin{bmatrix} \color{orange}{\zeta_{0i}} \\ \color{orange}{\zeta_{1i}} \end{bmatrix} \sim N \left( \begin{bmatrix} 0 \\ 0 \end{bmatrix}, \begin{bmatrix} \color{orange}{\sigma_0} & \color{orange}{\rho_{01}} \\ \color{orange}{\rho_{01}} & \color{orange}{\sigma_1} \end{bmatrix} \right) \\ & \varepsilon_{ij} \sim N(0,\sigma_\varepsilon) \\ \end{align} \]

MLMs for MLQs

Multi-level models can be used to answer multi-level questions!


Do phenomena at Level X predict outcomes at Level Y?

example:
\(n\) participants, each completes reaction time task multiple times.
Q: Does handedness (L vs R) predict variation in reaction times?

\[ \begin{align} \textrm{for person }i\textrm{, observation }j \\ \textrm{reaction time}_{ij} &= b_{0i} + \varepsilon_{ij} \\ b_{0i} &= \gamma_{00} + \zeta_{0i} + \gamma_{01}\textrm{handedness}_i \end{align} \]
Single equation:
\[ \begin{equation} \textrm{reaction time}_{ij} = (\gamma_{00} + \zeta_{0i}) + \gamma_{01}\textrm{handedness}_i + \varepsilon_{ij} \end{equation} \]

MLMs for MLQs

Multi-level models can be used to answer multi-level questions!


Do phenomena at Level X influence effects at Level Y?

example:
\(n\) children’s grades are recorded every year throughout school
Q: Does being mono/bi-lingual influence childrens’ grades over the duration of their schooling?

\[ \begin{align} \textrm{for child }i\textrm{, in year }j \\ \textrm{grade}_{ij} &= b_{0i} + b_{1i}\textrm{school year}_{ij} + \varepsilon_{ij} \\ b_{0i} &= \gamma_{00} + \zeta_{0i} + \gamma_{01}\textrm{bilingual}_i \\ b_{1i} &= \gamma_{10} + \zeta_{1i} + \gamma_{11}\textrm{bilingual}_i \\ \end{align} \]

Single equation:
\[ \begin{equation} \textrm{grade}_{ij} = (\gamma_{00} + \zeta_{0i} + \gamma_{01}\textrm{bilingual}_i) + (\gamma_{10} + \zeta_{1i} + \gamma_{11}\textrm{bilingual}_i)\cdot \textrm{school year}_{ij} + \varepsilon_{ij} \end{equation} \]

MLMs for MLQs

Multi-level models can be used to answer multi-level questions!


Do phenomena at Level X influence effects at Level Y?

example:
\(n\) children’s grades are recorded every year throughout school
Q: Does being mono/bi-lingual influence childrens’ grades over the duration of their schooling?

\[ \begin{align} \textrm{for child }i\textrm{, in year }j \\ \textrm{grade}_{ij} &= b_{0i} + b_{1i}\textrm{school year}_{ij} + \varepsilon_{ij} \\ b_{0i} &= \gamma_{00} + \zeta_{0i} + \gamma_{01}\textrm{bilingual}_i \\ b_{1i} &= \gamma_{10} + \zeta_{1i} + \gamma_{11}\textrm{bilingual}_i \\ \end{align} \]

Single equation:
\[ \begin{equation} \textrm{grade}_{ij} = (\gamma_{00} + \zeta_{0i}) + \gamma_{01}\textrm{bilingual}_i + (\gamma_{10} + \zeta_{1i})\cdot \textrm{school year}_{ij} + \gamma_{11}\textrm{bilingual}_i \cdot \textrm{school year}_{ij} + \varepsilon_{ij} \end{equation} \]

MLMs for MLQs

Multi-level models can be used to answer multi-level questions!


Do random variances covary?

example:
\(n\) participants’ cognitive ability is measured across time.
Q: Do people who have higher cognitive scores at start of study show less decline over the study period than those who have lower scores?

\[ \begin{align} \textrm{for person }i\textrm{, at time }j \\ \textrm{cognition}_{ij} &= b_{0i} + b_{1i}\textrm{time}_{ij} + \varepsilon_{ij} \\ b_{0i} &= \gamma_{00} + \zeta_{0i}\\ b_{1i} &= \gamma_{10} + \zeta_{1i}\\ \end{align} \] \[ \begin{equation} \begin{bmatrix} \zeta_{0i} \\ \zeta_{1i} \end{bmatrix} \sim N \left( \begin{bmatrix} 0 \\ 0 \end{bmatrix}, \begin{bmatrix} \sigma_0^2 & \rho_{01} \\ \rho_{01} & \sigma_1^2 \end{bmatrix} \right) \end{equation} \]

Multi-level models in R

The lme4 package

• lme4 package (many others are available, but lme4 is most popular).

• The lmer() function. syntax is similar to lm(), in that we specify:

  [outcome variable] ~ [explanatory variables], data = [name of dataframe]

• in lmer(), we have to also specify the random effect structure in parentheses:

  [outcome variable] ~ [explanatory variables] + ([vary this] | [by this grouping variable]), data = [name of dataframe], REML = [TRUE/FALSE]

A new example

In a study examining how cognition changes over time, a sample of 20 participants took the Addenbrooke’s Cognitive Examination (ACE) every 2 years from age 60 to age 78.

d3 <- read_csv("https://uoepsy.github.io/data/lmm_mindfuldecline.csv")
head(d3)

# A tibble: 6 × 7
  sitename ppt   condition visit   age   ACE imp
  <chr>    <chr> <chr>     <dbl> <dbl> <dbl> <chr>
1 Sncbk    PPT_1 control       1    60  84.5 unimp
2 Sncbk    PPT_1 control       2    62  85.6 imp
3 Sncbk    PPT_1 control       3    64  84.5 imp
4 Sncbk    PPT_1 control       4    66  83.1 imp
5 Sncbk    PPT_1 control       5    68  82.3 imp
6 Sncbk    PPT_1 control       6    70  83.3 imp

pptplots <-
  ggplot(d3, aes(x = visit, y = ACE, col = ppt)) +
  geom_point() +
  facet_wrap(~ppt) +
  guides(col = "none") +
  labs(x = "visit", y = "cognition")

pptplots

Fitting an lm

lm_mod <- lm(ACE ~ 1 + visit, data = d3)
summary(lm_mod)

Call:
lm(formula = ACE ~ 1 + visit, data = d3)

Residuals:
   Min     1Q Median     3Q    Max
-4.868 -1.054 -0.183  1.146  6.632

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept)  85.6259     0.3022   283.3  < 2e-16 ***
visit        -0.3857     0.0488    -7.9  2.9e-13 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 1.88 on 175 degrees of freedom
Multiple R-squared:  0.263, Adjusted R-squared:  0.259
F-statistic: 62.5 on 1 and 175 DF,  p-value: 2.9e-13

pptplots +
  geom_line(aes(y=fitted(lm_mod)), col = "blue", lwd=1)

random intercept

vary the intercept by participant.

library(lme4)
ri_mod <- lmer(ACE ~ 1 + visit +
                 (1 | ppt), data = d3)
summary(ri_mod)

Linear mixed model fit by REML ['lmerMod']
Formula: ACE ~ 1 + visit + (1 | ppt)
   Data: d3

REML criterion at convergence: 595

Scaled residuals:
    Min      1Q  Median      3Q     Max
-2.8830 -0.5445 -0.0232  0.6491  3.0494

Random effects:
 Groups   Name        Variance Std.Dev.
 ppt      (Intercept) 2.25     1.5
 Residual             1.21     1.1
Number of obs: 177, groups:  ppt, 20

Fixed effects:
            Estimate Std. Error t value
(Intercept)  85.6497     0.3800   225.4
visit        -0.3794     0.0287   -13.2

Correlation of Fixed Effects:
      (Intr)
visit -0.411

pptplots +
  geom_line(aes(y=fitted(ri_mod)), col = "red", lwd=1)

random intercepts and slopes

vary the intercept and the slope by participant

library(lme4)
rs_mod <- lmer(ACE ~ 1 + visit +
                 (1 + visit | ppt), data = d3)
summary(rs_mod)

Linear mixed model fit by REML ['lmerMod']
Formula: ACE ~ 1 + visit + (1 + visit | ppt)
   Data: d3

REML criterion at convergence: 365

Scaled residuals:
    Min      1Q  Median      3Q     Max
-2.3120 -0.6818 -0.0526  0.7016  2.4022

Random effects:
 Groups   Name        Variance Std.Dev. Corr
 ppt      (Intercept) 0.157    0.396
          visit       0.104    0.322    -0.59
 Residual             0.244    0.494
Number of obs: 177, groups:  ppt, 20

Fixed effects:
            Estimate Std. Error t value
(Intercept)  85.5843     0.1201  712.67
visit        -0.3588     0.0733   -4.89

Correlation of Fixed Effects:
      (Intr)
visit -0.534

pptplots +
  geom_line(aes(y=fitted(rs_mod)), col = "orange", lwd=1)

random intercepts and slopes

vary the intercept and the slope by participant

library(lme4)
rs_mod <- lmer(ACE ~ 1 + visit +
                 (1 + visit | ppt), data = d3)
summary(rs_mod)

Linear mixed model fit by REML ['lmerMod']
Formula: ACE ~ 1 + visit + (1 + visit | ppt)
   Data: d3

REML criterion at convergence: 365

Scaled residuals:
    Min      1Q  Median      3Q     Max
-2.3120 -0.6818 -0.0526  0.7016  2.4022

Random effects:
 Groups   Name        Variance Std.Dev. Corr
 ppt      (Intercept) 0.157    0.396
          visit       0.104    0.322    -0.59
 Residual             0.244    0.494
Number of obs: 177, groups:  ppt, 20

Fixed effects:
            Estimate Std. Error t value
(Intercept)  85.5843     0.1201  712.67
visit        -0.3588     0.0733   -4.89

Correlation of Fixed Effects:
      (Intr)
visit -0.534

random intercepts and slopes

vary the intercept and the slope by participant

library(lme4)
rs_mod <- lmer(ACE ~ 1 + visit +
                 (1 + visit | ppt), data = d3)
summary(rs_mod)

Linear mixed model fit by REML ['lmerMod']
Formula: ACE ~ 1 + visit + (1 + visit | ppt)
   Data: d3

REML criterion at convergence: 365

Scaled residuals:
    Min      1Q  Median      3Q     Max
-2.3120 -0.6818 -0.0526  0.7016  2.4022

Random effects:
 Groups   Name        Variance Std.Dev. Corr
 ppt      (Intercept) 0.157    0.396
          visit       0.104    0.322    -0.59
 Residual             0.244    0.494
Number of obs: 177, groups:  ppt, 20

Fixed effects:
            Estimate Std. Error t value
(Intercept)  85.5843     0.1201  712.67
visit        -0.3588     0.0733   -4.89

Correlation of Fixed Effects:
      (Intr)
visit -0.534

Asking multi-level questions!

are changes in cognition (observation-level) different between conditions (participant-level)?

cli_mod <- lmer(ACE ~ 1 + visit * condition +
                 (1 + visit | ppt), data = d3)
summary(cli_mod)

Linear mixed model fit by REML ['lmerMod']
Formula: ACE ~ 1 + visit * condition + (1 + visit | ppt)
   Data: d3

REML criterion at convergence: 362

Scaled residuals:
   Min     1Q Median     3Q    Max
-2.296 -0.686 -0.041  0.686  2.420

Random effects:
 Groups   Name        Variance Std.Dev. Corr
 ppt      (Intercept) 0.1467   0.383
          visit       0.0769   0.277    -0.49
 Residual             0.2445   0.495
Number of obs: 177, groups:  ppt, 20

Fixed effects:
                           Estimate Std. Error t value
(Intercept)                 85.7353     0.1688  507.79
visit                       -0.5319     0.0897   -5.93
conditionmindfulness        -0.2979     0.2362   -1.26
visit:conditionmindfulness   0.3459     0.1269    2.73

Correlation of Fixed Effects:
            (Intr) visit  cndtnm
visit       -0.471
cndtnmndfln -0.715  0.337
vst:cndtnmn  0.333 -0.707 -0.473

lmer output

summary(model)

Linear mixed model fit by REML ['lmerMod']
Formula: y ~ x + (1 + x | group)
   Data: my_data

REML criterion at convergence: 335

Scaled residuals:
    Min      1Q  Median      3Q     Max
-2.1279 -0.7009  0.0414  0.6645  2.1010

Random effects:
 Groups   Name        Variance Std.Dev. Corr
 group    (Intercept) 1.326    1.152
          x           0.152    0.390    -0.88
 Residual             0.262    0.512
Number of obs: 170, groups:  group, 20

Fixed effects:
            Estimate Std. Error t value
(Intercept)   1.7890     0.2858    6.26
x            -0.6250     0.0996   -6.27

lmer output

summary(model)

Linear mixed model fit by REML ['lmerMod']
Formula: y ~ x + (1 + x | group)
   Data: my_data

REML criterion at convergence: 335

Scaled residuals:
    Min      1Q  Median      3Q     Max
-2.1279 -0.7009  0.0414  0.6645  2.1010

Random effects:
 Groups   Name        Variance Std.Dev. Corr
 group    (Intercept) 1.326    1.152
          x           0.152    0.390    -0.88
 Residual             0.262    0.512
Number of obs: 170, groups:  group, 20

Fixed effects:
            Estimate Std. Error t value
(Intercept)   1.7890     0.2858    6.26
x            -0.6250     0.0996   -6.27

lmer output

summary(model)

Linear mixed model fit by REML ['lmerMod']
Formula: y ~ x + (1 + x | group)
   Data: my_data

REML criterion at convergence: 335

Scaled residuals:
    Min      1Q  Median      3Q     Max
-2.1279 -0.7009  0.0414  0.6645  2.1010

Random effects:
 Groups   Name        Variance Std.Dev. Corr
 group    (Intercept) 1.326    1.152
          x           0.152    0.390    -0.88
 Residual             0.262    0.512
Number of obs: 170, groups:  group, 20

Fixed effects:
            Estimate Std. Error t value
(Intercept)   1.7890     0.2858    6.26
x            -0.6250     0.0996   -6.27

lmer output

summary(model)

Linear mixed model fit by REML ['lmerMod']
Formula: y ~ x + (1 + x | group)
   Data: my_data

REML criterion at convergence: 335

Scaled residuals:
    Min      1Q  Median      3Q     Max
-2.1279 -0.7009  0.0414  0.6645  2.1010

Random effects:
 Groups   Name        Variance Std.Dev. Corr
 group    (Intercept) 1.326    1.152
          x           0.152    0.390    -0.88
 Residual             0.262    0.512
Number of obs: 170, groups:  group, 20

Fixed effects:
            Estimate Std. Error t value
(Intercept)   1.7890     0.2858    6.26
x            -0.6250     0.0996   -6.27

Model Parameters

summary(model)

Linear mixed model fit by REML ['lmerMod']
Formula: y ~ x + (1 + x | group)
   Data: my_data

REML criterion at convergence: 335

Scaled residuals:
    Min      1Q  Median      3Q     Max
-2.1279 -0.7009  0.0414  0.6645  2.1010

Random effects:
 Groups   Name        Variance Std.Dev. Corr
 group    (Intercept) 1.326    1.152
          x           0.152    0.390    -0.88
 Residual             0.262    0.512
Number of obs: 170, groups:  group, 20

Fixed effects:
            Estimate Std. Error t value
(Intercept)   1.7890     0.2858    6.26
x            -0.6250     0.0996   -6.27

Fixed effects:

fixef(model)

(Intercept)           x
      1.789      -0.625

Variance components:

VarCorr(model)

 Groups   Name        Std.Dev. Corr
 group    (Intercept) 1.152
          x           0.390    -0.88
 Residual             0.512

Model Predictions: ranef, coef

summary(model)

Linear mixed model fit by REML ['lmerMod']
Formula: y ~ x + (1 + x | group)
   Data: my_data

REML criterion at convergence: 335

Scaled residuals:
    Min      1Q  Median      3Q     Max
-2.1279 -0.7009  0.0414  0.6645  2.1010

Random effects:
 Groups   Name        Variance Std.Dev. Corr
 group    (Intercept) 1.326    1.152
          x           0.152    0.390    -0.88
 Residual             0.262    0.512
Number of obs: 170, groups:  group, 20

Fixed effects:
            Estimate Std. Error t value
(Intercept)   1.7890     0.2858    6.26
x            -0.6250     0.0996   -6.27

ranef(model)

           (Intercept)       x
cluster_1       0.7019 -0.3113
cluster_10      1.8388 -0.3828
cluster_11     -0.0781  0.1098
cluster_12     -1.7005  0.3658
cluster_13     -1.0825   0.355
...                ...     ...

coef(model)

           (Intercept)       x
cluster_1        2.491 -0.9363
cluster_10      3.6278 -1.0078
cluster_11       1.711 -0.5152
cluster_12      0.0885 -0.2592
cluster_13      0.7065   -0.27
...                ...     ...

coef = fixef + ranef

Model Performance

R-squared

• Marginal \(R^2\): considers only the variance of the fixed effects (without the random effects)

• Conditional \(R^2\): considers both the fixed and random effects

library(performance)
r2(model)

# R2 for Mixed Models

  Conditional R2: 0.750
     Marginal R2: 0.338

Information Criterion

(only useful for comparing models)

AIC(model)

[1] 347

BIC(model)

[1] 365

Inference

• Degrees of freedom for multilevel models is not clear
• Lots and lots of different methods

library(lmerTest) # overwrites the lmer() function
model <- lmer(y ~ x + (1 + x | group), my_data)
summary(model)

Linear mixed model fit by REML. t-tests use Satterthwaite's method [
lmerModLmerTest]
Formula: y ~ x + (1 + x | group)
   Data: my_data

REML criterion at convergence: 335

Scaled residuals:
    Min      1Q  Median      3Q     Max
-2.1279 -0.7009  0.0414  0.6645  2.1010

Random effects:
 Groups   Name        Variance Std.Dev. Corr
 group    (Intercept) 1.326    1.152
          x           0.152    0.390    -0.88
 Residual             0.262    0.512
Number of obs: 170, groups:  group, 20

Fixed effects:
            Estimate Std. Error      df t value Pr(>|t|)
(Intercept)   1.7890     0.2858 16.4478    6.26 0.000010 ***
x            -0.6250     0.0996 15.4780   -6.27 0.000013 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Correlation of Fixed Effects:
  (Intr)
x -0.894

Inference

• Degrees of freedom for multilevel models is not clear
• Lots and lots of different methods

restricted_model <- lmer(y ~ 1 + (1 + x | group), my_data)
model <- lmer(y ~ 1 + x + (1 + x | group), my_data)
anova(restricted_model, model) # likelihood ratio test

Data: my_data
Models:
restricted_model: y ~ 1 + (1 + x | group)
model: y ~ 1 + x + (1 + x | group)
                 npar AIC BIC logLik deviance Chisq Df Pr(>Chisq)
restricted_model    5 361 377   -176      351
model               6 341 360   -165      329  21.9  1  0.0000029 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Summary

• We can extend our linear model equation to model certain parameters as random cluster-level adjustments around a fixed center.

• \(\color{red}{y_i} = \color{blue}{b_0 \cdot{} 1 \; + \; b_1 \cdot{} x_{i} } + \varepsilon_i\)
  if we allow the intercept to vary by cluster, becomes:
  \(\color{red}{y_{ij}} = \color{blue}{b_{0i} \cdot 1 + b_{1} \cdot x_{ij}} + \varepsilon_{ij}\)
  \(\color{blue}{b_{0i}} = \gamma_{00} + \color{orange}{\zeta_{0i}}\)

• We can express this as one equation if we prefer: \(\color{red}{y_{ij}} = \underbrace{(\gamma_{00} + \color{orange}{\zeta_{0i}})}_{\color{blue}{b_{0i}}} \cdot 1 + \color{blue}{b_{1} \cdot x_{ij}} + \varepsilon_{ij}\)

• We can allow slopes to vary by-cluster too.

• This allows us to model cluster-level variation around the intercept (“random intercepts”) and around slopes (“random slopes”).

• We can fit this using the lme4 package in R

This week

Tasks

Complete readings

Attend your lab and work together on the exercises

Complete the weekly quiz

Support

Piazza forum!

Office hours (see Learn page for details)
